Product Description
The B1350-CT is the first ‘C head’ tool of the next generation of cordless hydraulic tools, heralding a significantly advantageous evolution from current models.
Born of the renowned B135-C type crimping tool, the 130 kN B1350-CT is suitable for a wide range of connectors up to 400mm- using all semi-circular slotted dies common to Cembre 130kN tools.
New Li-Ion 18V 4 Ah batteries offer a higher capacity than 14.4V 3 Ah, while greater crimping speed and crimping force result from a revitalised hydraulic system with double speed action: a more rapid approach of dies to the connector then a more controlled, powerful speed for crimping. A maximum pressure sensor and security valve together assure greater precision and repeatability of the pressure cycle and double the provision for operator safety.
13T Battery Hydraulic Crimper Features
– Greater crimping speed and force
– Maximum pressure sensor and security valve for greater precision and operator safety
– Bi-component plastic shell provides high resistance to wear and damage
– Rubber grip
– Low noise and minimal vibration for operator comfort
– LED lighting area for additional convenience and safety
– Crimping cycle data (up to 200,000 events) stored on memory card for transfer to PC by USB interface
Li-Ion Battery Features
– Provides 100% of its energy between -15¦C and 50¦C
– Electronic control of single cells to avoid overcharging and undercharging
– Air-cooled charging technology to increase battery life
– Quickest charging time
– Auto-off to optimise energy consumption
Technical Data
Crimping Force: 132kN
Dimensions:
Length: 338mm
Height: 344mm
Width: 83mm
Battery: Li-Ion 18V 4.0 Ah
Weight (with battery): 6.41kg
The B1350-CT is supplied with
– Battery and shoulder strap
– Spare battery
– Battery charger

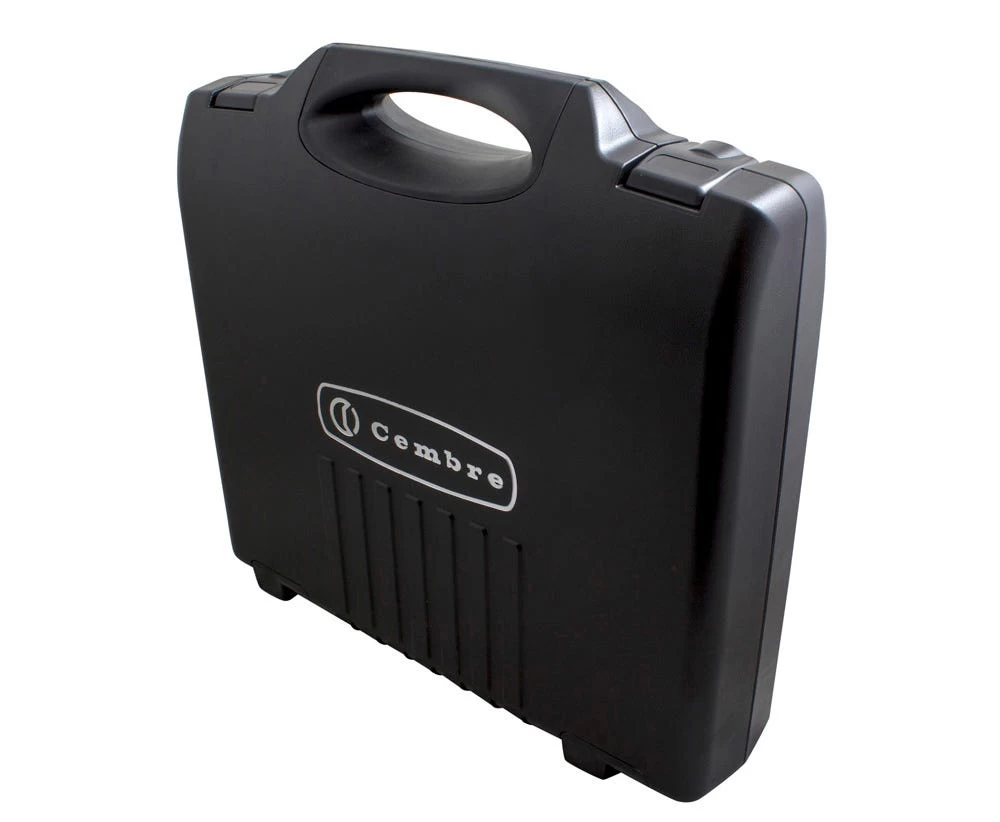

– Plastic carrying case suitable for storing the tool and seven die sets
OLED Display
The OLED display provides essential real time tool operating information data including:
– Minimum set force and momentary force reached expressed in kN (confirms correct operation
– Minimum set force and momentary force reached expressed in US Ton (confirms correct operation)
– Minimum set pressure and momentary pressure reached expressed in bar (confirm correct operation)
– Minimum set pressure and momentary pressure reached expressed in Psi (confirm correct operation)
– Battery charge level
– No. of cycles performed and No. of cycles recommended before scheduled maintenance
– Cembre logo, tool model and tool serial No.
– LED Worklights (On and Off)
– Return to factory settings/firmware version
