Sale!

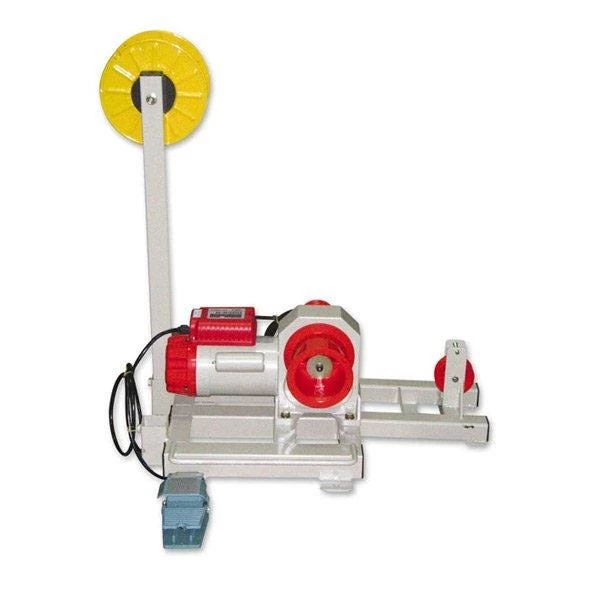

240V Capstan Winch – 2.5ton

Original price was: $380.00.Current price is: $99.99.

240 Volt single phase cable puller with a dual pulling capacity of 2500kg and 1500kg
Overload protection switch – ensures automatic shut-off
Electromagnetic spring-applied fail safe brake
Rugged high power induction motor for proven reliability

SKU: MSS-H2500 Category: Tools and Equipment Tag: MSSPOWER

Uncompromising quality, every time.
Discover a world of quality products.
Multiple payment options for secure shopping with SSL
100% Quality Promise

Description
Reviews (0)

Product Description

240V Electric Capstan Winch 1.5/2.5 Tonne

The Electric Capstan Winch is a 240 Volt single phase cable puller with a dual pulling capacity of 2500kg and 1500kg (dual speeds vary according to the drum size).

240V Electric Capstan Winch 1.5/2.5 Tonne Features
• Dual pulling capacity of 2500kg and 1500kg
• Overload protection switch – ensures automatic shut-off
• Electromagnetic spring-applied fail safe brake
• Heavy Duty high efficiency ball bearings on all running surfaces
• Rugged high power induction motor for proven reliability
• Case hardened gear train for maximum mechanical efficiency
• Rope storage reeler
• Supplied with 3 metre power supply cable

Important Information:
• Do NOT use the Comeup Capstan Winch as a lifting device for vertical lifting
• Suitable rope diameter is 7-12mm. Rope is not supplied as a standard
• A minimum of six wraps of rope around the drum is necessary to support the rated load

Technical Information

Drum Type Large Drum Small Drum

Stock Code CAP250

Rated Capacity (kg) 1500 2500

Max. Pulling Duration (min) 15 15

Motor Output 240V 0.6kW IP44

Rope Speed (m/min) 4.0 2.5

Control Foot Control

Gear Ratio 154:1

Net Weight (kg) 60 60
