Product Description

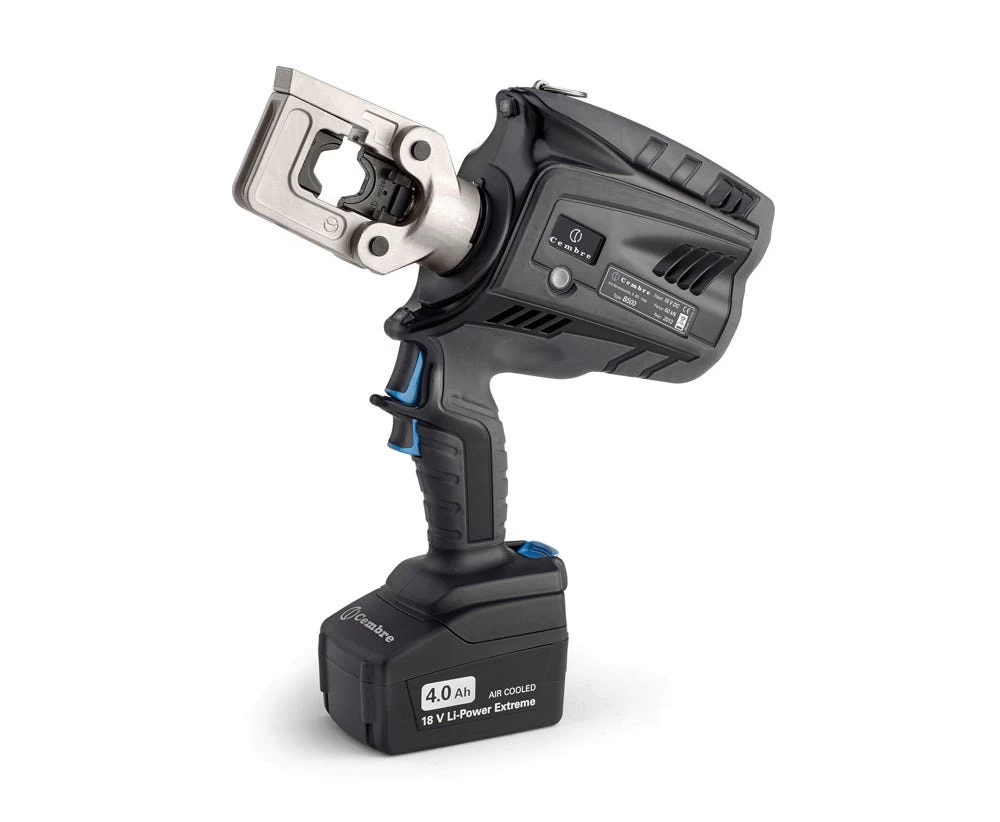

Born of the renowned B51 type crimping tool, first into the market is the 60kN B500, suitable for a wide range of connectors up to 240mm2 using die sets common to the Cembre 50kN tooling range.
New Li-Ion 18 V 4 Ah (type CB1840L) batteries offer a higher capacity than 14.4 V 3 Ah, while greater crimping speed and crimping force result from a revitalised hydraulic system with double speed action: a more rapid approach of the dies to the connector then a more controlled, powerful speed for crimping. A maximum pressure sensor and security valve together assure greater precision and repeatability of the pressure cycle and double the provision for operator safety.
5T Battery Hydraulic Crimper Features
– Greater crimping speed and force
– Maximum pressure sensor and security valve for greater precision and operator safety
– Improved handling balance
– Bi-component plastic shell provides high resistance to wear and damage
– Rubber grip
– Low noise and minimal vibration for operator comfort
– LED lighting area for additional convenience and safety
– Crimping cycle data (up to 200,000 events) stored on memory card for transfer to PC by USB interface.
Technical Data
Crimping Force: 60kN
Dimensions:
Length: 287mm
Height: 343mm
Width: 83mm
Battery: Li-Ion 18V 4.0 Ah
Weight (with battery): 4.2kg
OLED Display
The OLED display provides essential real time tool operating information data including:
– Minimum set force and momentary force reached expressed in kN (confirms correct operation
– Minimum set force and momentary force reached expressed in Tons (confirms correct operation)
– Minimum set pressure and momentary pressure reached expressed in bar (confirm correct operation)
– Minimum set pressure and momentary pressure reached expressed in Psi (confirm correct operation)
– Battery charge level
– No. of cycles performed and No. of cycles recommended before scheduled maintenance
– Cembre logo, tool model and tool serial No.
– LED Worklights (On and Off)
– Return to factory settings/firmware version
