Adaptor DisplayPort M-VGA F

Product Description

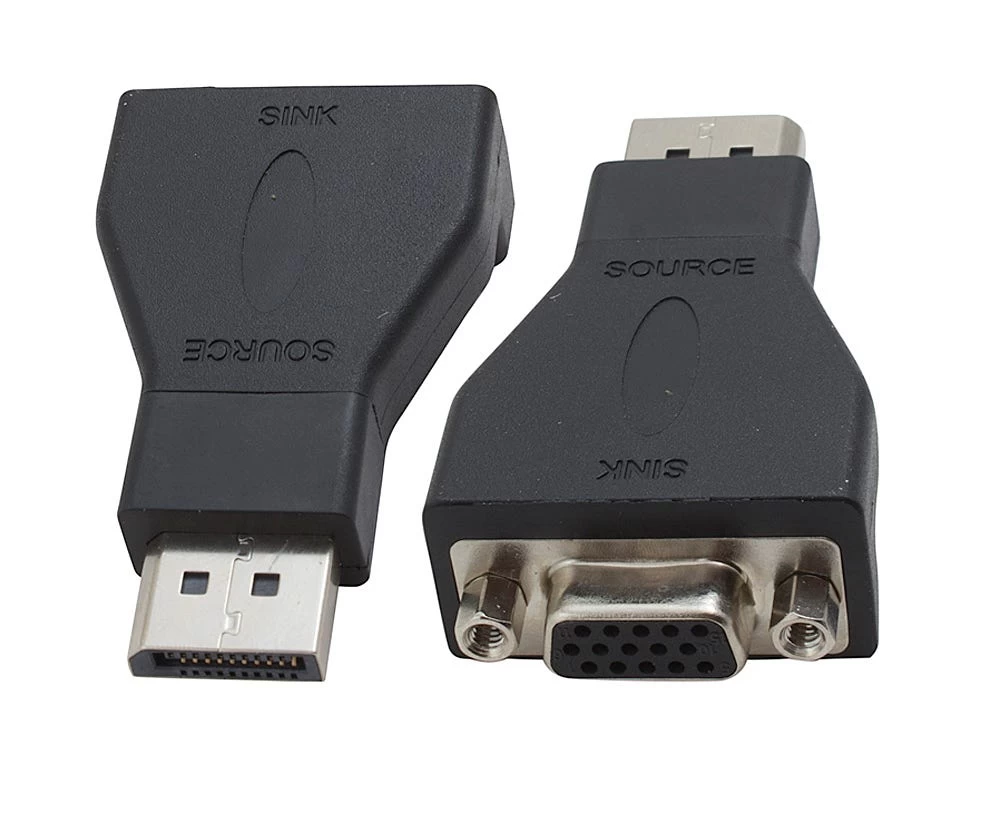

Adaptor Displayport – Male to VGA Female

A Displayport to VGA signal format converter for interfacing next generation Displayport based PC and notebook computers with conventional VGA displays, such as CRT, LCD monitors, and projectors.

Displayport offers a unified, scalable and cost effective interface for embedded and external display applications. As desktop and notebook PCs are increasingly transitioning from conventional analog type interfaces to Displayport, the converter facilitates the transition by offering seamless connectivity between new Displayport PC and notebooks and the installed base VGA monitors and projectors. It offers solutions for digital entertainment centre, projector factory, noisy space and security concerns, conference room presentation, school and corporate training environments.

Adaptor Displayport – Male to VGA Female Features
• Displayport 1.1a compliant receiver – 5.4 Gbps bandwidth over 2 lanes
• Integrate triple 10-bit, 162Mhz video DAC for analog VGA signal output
• VGA output pixel rate up to 240Mhz
• Supports up to 1080p, 1920 x 1200 reduced blanking video resolution
• Supports automatic monitor plug and unplug detect for VGA output
• EDID pass-through from PC source to display
• Supports ultra-fast video image recovery
• Spread Spectrum (de-spreading) for EMI reduction
• Automatic sink detection
• Low power standby mode operation initiated based on sink detection status
• Power from Displayport source
• 3.3V power supplies for IO, 1.2V for IC core and 5V output pin available for VGA interface
• Low power operation – Active 400mW, standby mode 15mw

Technical Data

Signal Inputs/OutputMaximum Single Link Range1920 x 1200, 1080p

Video Format SupportedVGAMax to 1920 x 1200

Operating FrequencyVertical Frequency Range50/60Hz

Video Amplifier Bandwidth162Mhz

MechanicalSize (L x W x H)65 x 35 x 17mm

Weight (Net)28g

EnvironmentalOperating Temperature0°C to +70°C

Operating Humidity10% to 85% RH (no condensation)

Storage Temperature-10°C to +80°C

External Power Requirement No
