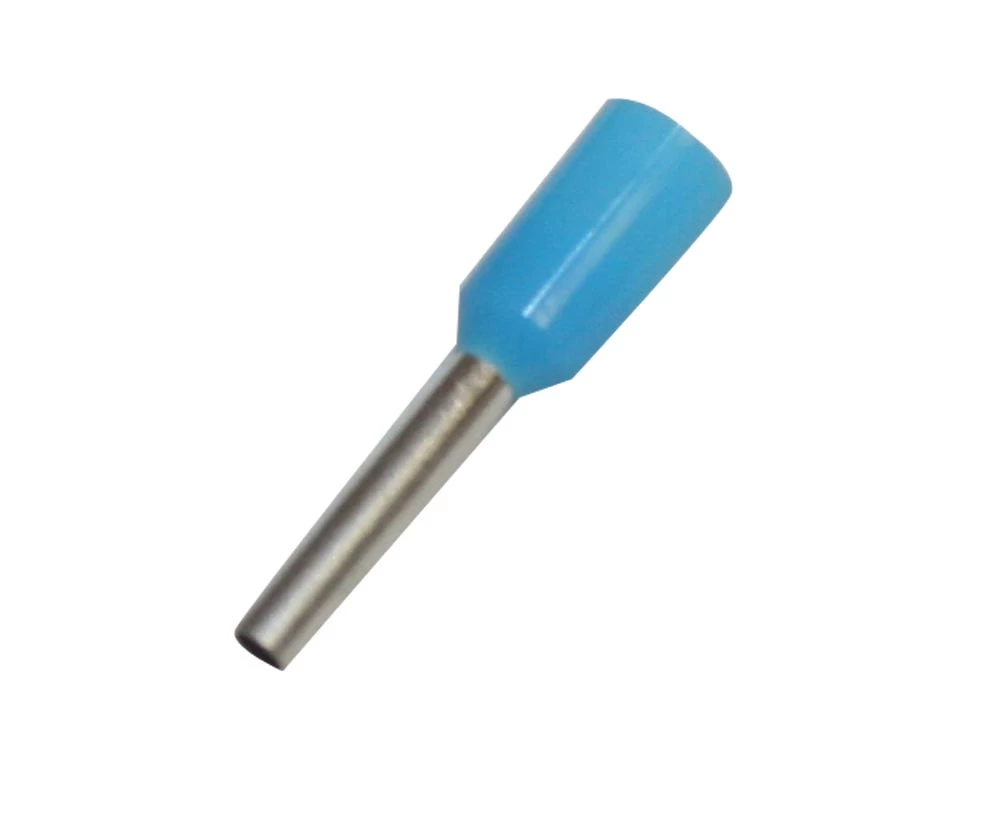

Boot Lace Pin 0.75mm2-Blue 500Pack Halogen Free

Original price was: $38.51.Current price is: $26.96.

Terminate stranded conductors with a thin-walled copper sleeve crimped securely in place, ensuring all strands are contained.
The crimped sleeve is held in position until the housing screw establishes a connection, ensuring a secure and reliable termination.
Optimal results can be achieved by using one of our HNKE range of crimp tools.
All components are environmentally safe, being Halogen Free and RoHS compliant.
Suitable for applications between -55 degrees C to +105 degrees C, made from copper and nylon, and designed for use with copper cables only. The plating micron thickness is 0.003mm.

SKU: BLP075/500 Categories: Electrical & Power Connectivity, Terminals Tag: CABAC

Uncompromising quality, every time.
Discover a world of quality products.
Multiple payment options for secure shopping with SSL
100% Quality Promise

Product Description

Bootlace pins are used to terminate conductors, by containing the strands in a thin walled copper sleeve that is crimped on to the conductor. The sleeve ensures that no conductor strands stray, and also stops screws in the terminal from breaking strands. With the use of larger diameter flexible cables, the range is continually growing, so please contact our sales department if an item you need is not shown.

There are three basic types of Bootlace Pin:
– Insulated single conductor style
– Twin conductor style
– Uninsulated cord end sleeves

The sleeves should be slipped over the stripped conductor, and crimped with one of our HNKE range of crimp tools. The crimp is only to hold the sleeve on conductor until screw of terminal housing makes the connection.
