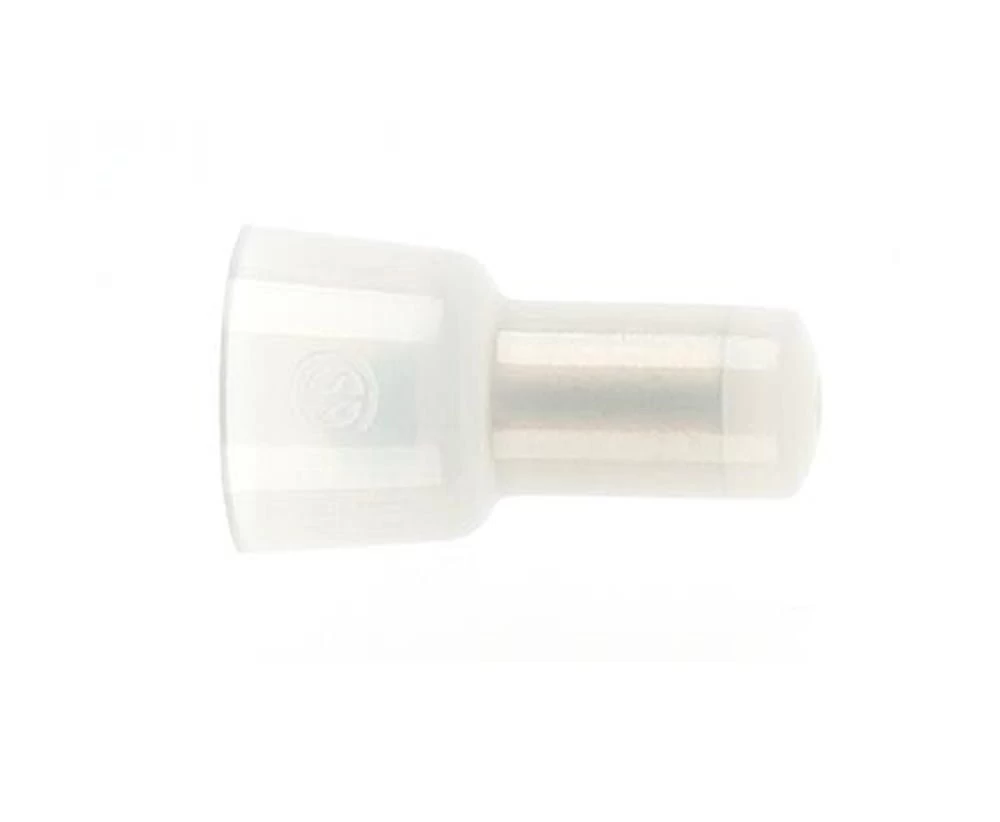

End Connector Insulated White 1.0-2.6mm2

Product
Description:

Pre-Insulated End Connectors, commonly referred to as
‘Closed-End’ connectors, are designed for electrical wire termination. These
connectors ensure a secure, durable, and insulated connection suitable for a
variety of electrical applications.

Material
Composition:

Sleeve: The connector sleeve is made of high-quality
copper, known for its excellent conductivity and corrosion resistance.

Insulation: The sleeve is encapsulated in a nylon
insulation, providing robust electrical insulation and mechanical protection.

Electrical
Specifications:

Maximum Voltage Rating: These connectors are rated
for a maximum voltage of 300V, making them suitable for low voltage
applications.

Maximum Temperature Rating: The connectors can
withstand temperatures up to 105 degrees Celsius, ensuring reliability in
high-temperature environments.

Mechanical
Properties:

Copper Sleeve: Offers superior electrical
conductivity and ensures a secure crimping connection.

Nylon Insulation: Provides excellent resistance to
abrasion, chemicals, and high temperatures.

Safety
and Compliance:

UL486C Approval: This product meets the standards set
by UL (Underwriters Laboratories) under the category UL486C, indicating safety
for wire connectors.

CSA C22.2 No.188 Certification: Complies with the
standards of the Canadian Standards Association (CSA) under CSA C22.2 No.188,
ensuring quality and safety for the Canadian market.

Applications:

These connectors are suitable for wire termination in a
variety of electrical installations including residential, commercial, and
industrial applications where low voltage and high temperature endurance are
required.

Installation
Instructions:

Wire Preparation: Strip the wire end as per the
recommended strip length.

Insertion: Insert the stripped wire into the
connector until it reaches the end.

Crimping: Use a suitable crimping tool to crimp the
connector, ensuring a secure and permanent electrical connection.

Warnings
and Cautions:

• Ensure the electrical system is powered down before
  installation.

• Use appropriate tools for crimping to avoid damaging the
  connector.

• Do not exceed the specified voltage and temperature ratings.

• Storage
  and Handling:

• Store in a dry and cool place.
• Avoid exposure to corrosive substances.
