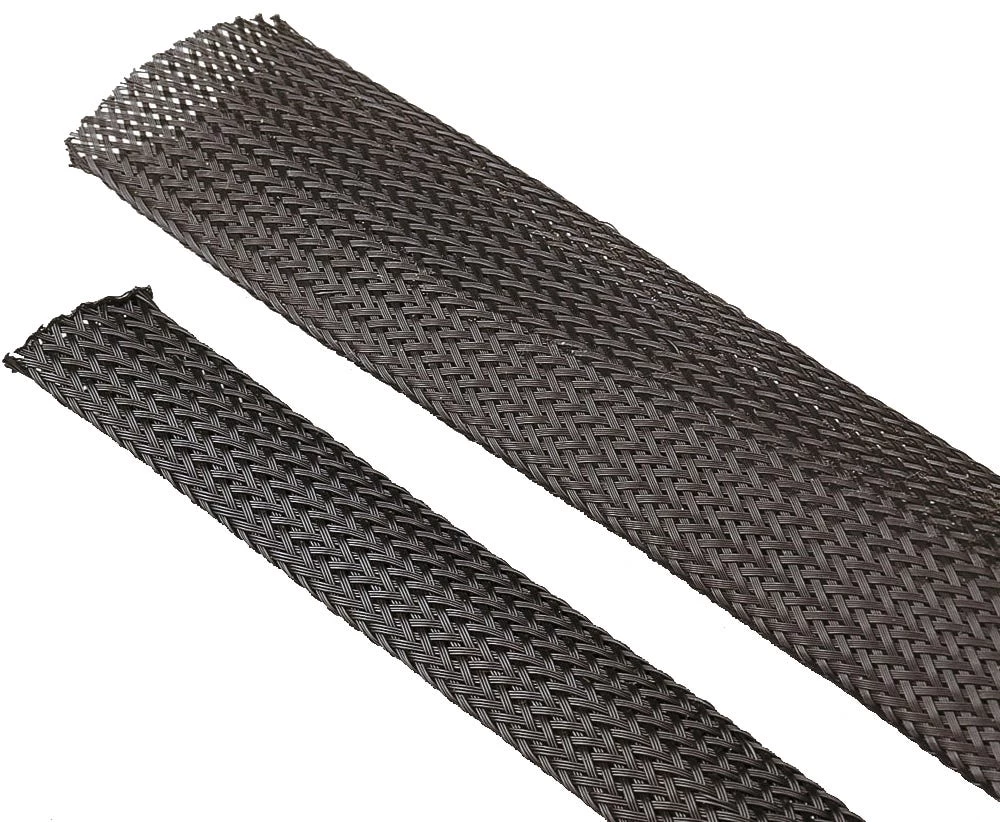

Exp.Polyester Braid Sleeve 5-10mm 8m

Product Description

Our polyester braided sleeving is a highly flexible cable management solution designed to bundle loose cables and wires into a protective cable harness. Made from monofilament polyester, the braid contracts in length to allow the internal diameter of the sleeve to expand. The large expansion range of our braided mesh means that the internal diameter of the sleeve will double in size to conform to cables and wires, as well as accommodate any irregularities in the size and shape of the cable harness bundle. The sleeve is easy to install, and once in place individual wires may be passed through the sleeving to allow for breakouts at any point along the length of the harness.

Braided sleeving provides mechanical protection, preventing wear and other surface abrasions from damaging conductors. The sleeving is resistant to most aggressive chemicals. The polyester material is also heat resistant and self-extinguishing, providing thermal protection for conductors.

Supplied in handy kit packs, a convenient option for smaller jobs. We also have longer bulk reels available in a variety of sizes.

Product Specifications

Nominal ID: 6mm
ID Minimum: 5mm
ID Maximum: 10mm
Expansion Ratio: 1:2
Monofilament Diameter: 0.22mm
Reel Length: 8m

Not the size you’re looking for? We have a wide variety of sizes to choose from-refer to the product data sheet for a handy selection chart.

Technical Data

Conformant Standards: IEC684-349, UL224
Material: Polyester
Operating Temperature: -50 to +150 degrees Celsius
Flammability: Self-extinguishing
Chemical Resistance: Resistant to most aggressive chemicals
