FITTING CLT/CETX 45DEG STRAIGHT FIXED EXTERNAL THREAD NPB M25

Product Description

The CABFLX range of liquid tight conduit fittings provide quick and reliable wiring protection for a range of industrial and commercial applications. Our male thread fittings feature an external thread for threaded entries and knockouts, and are designed to securely attach conduit to enclosures, machinery or bulkheads.

Our 45-degree brass conduit fittings feature high-quality nickel plating for superior durability. With superior chemical resistance and a dust proof, liquid tight seal, LTCM fittings are suitable for installations that require mechanical and environmental protection. Possible applications include: machining centres and robotics, general wiring for OEM applications, low fire hazard applications, underfloor wiring in office buildings or any narrow space in static applications.

All liquid tight fittings are supplied complete with sealing ring and a flanged grounding cone for excellent pull-out strength. One-piece installation makes these fittings easy to use; the fitting simply swivels on the conduit until tightened. Does not come with lock nut.

Technical Data

Material
Connector body: Nickel plated brass
Hexagonal nut: Nickel plated brass
Sealing ring: Nylon 66
Ferrule: Galvanised steel

Dimensions
Thread size: M25 x 1.5
Conduit size: 25mm
A: 56mm
B (A/C): 39mm
C (A/C): 38.5mm
D: 42mm

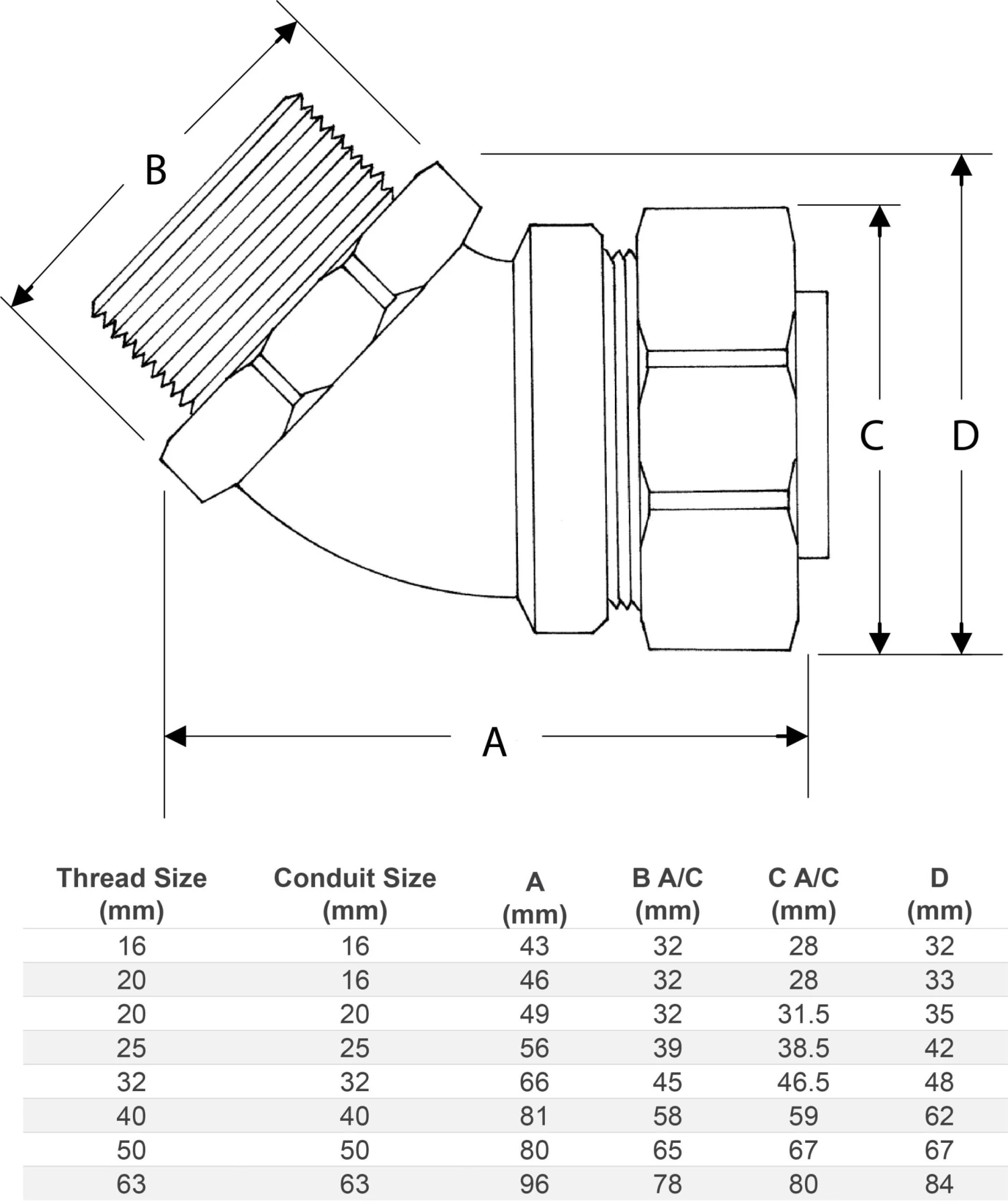

Refer to line drawing for reference (see additional information)
