FITTING CLT/CETX 90DEG STRAIGHT FIXED EXTERNAL THREAD NPB M40

Original price was: $68.51.Current price is: $47.96.

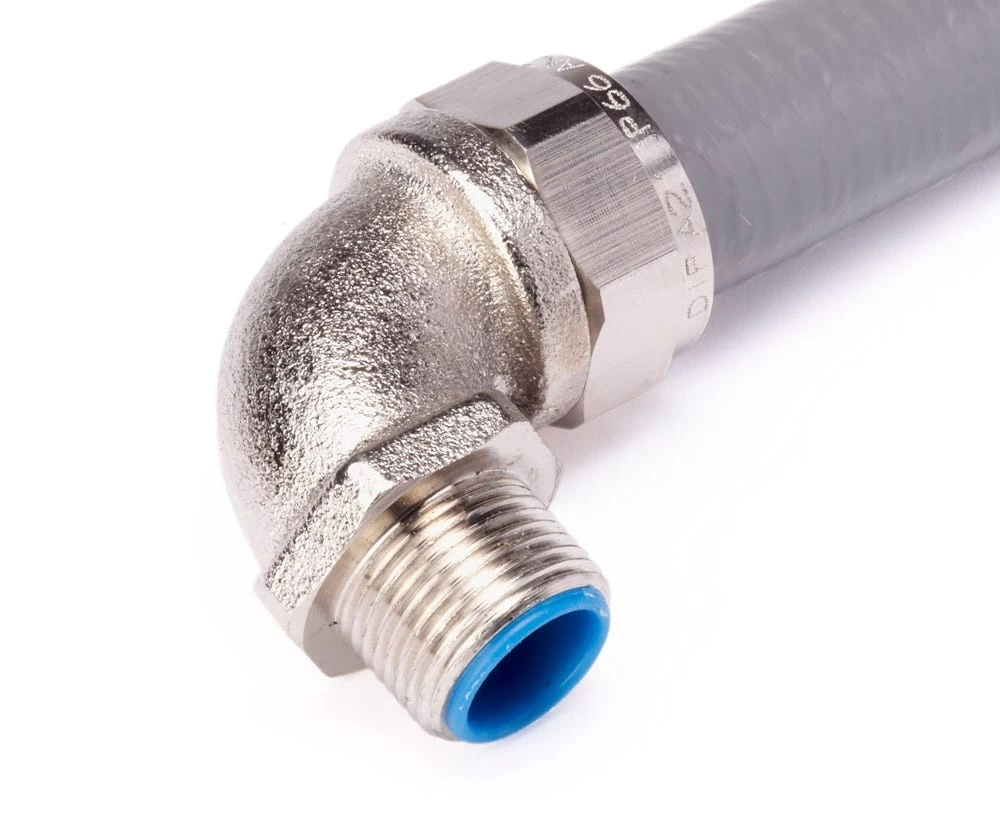

Nickel plated brass liquid tight 90 degree fitting, presents a male thread
Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
Ex ta IIIC IP66 Hazardous Area Type Protection
IEC Ex TSA 11.0026 Hazard Area Certification Number
High performing chemical resistance and mechanical strength

SKU: LTCM-B24 Category: Cable & Wire Management Tag: CABFLX

Uncompromising quality, every time.
Discover a world of quality products.
Multiple payment options for secure shopping with SSL
100% Quality Promise

Product Description

The CABFLX range of liquid tight conduit fittings provide quick and reliable wiring protection for a range of industrial and commercial applications. Our male thread fittings feature an external thread for threaded entries and knockouts, and are designed to securely attach conduit to enclosures, machinery or bulkheads.

Our 90-degree brass conduit fittings feature high-quality nickel plating for superior durability. With superior chemical resistance and a dust proof, liquid tight seal, LTCM fittings are suitable for installations that require mechanical and environmental protection. Possible applications include: machining centres and robotics, general wiring for OEM applications, low fire hazard applications, underfloor wiring in office buildings or any narrow space in static applications.

All liquid tight fittings are supplied complete with sealing ring and a flanged grounding cone for excellent pull-out strength. One-piece installation makes these fittings easy to use; the fitting simply swivels on the conduit until tightened. Does not come with lock nut.

Technical Data

Material
Connector body: Nickel plated brass
Hexagonal nut: Nickel plated brass
Sealing ring: Nylon 66
Ferrule: Galvanised steel

Dimensions
Thread size: M40 x 1.5
Conduit size: 40mm
A: 98mm
B (A/C): 58mm
C (A/C): 59mm
D: 70mm
Refer to line drawing for reference (see additional information)
