Gland M16 Maxiblock Ex E L15mm PA66 IP65

Product Description

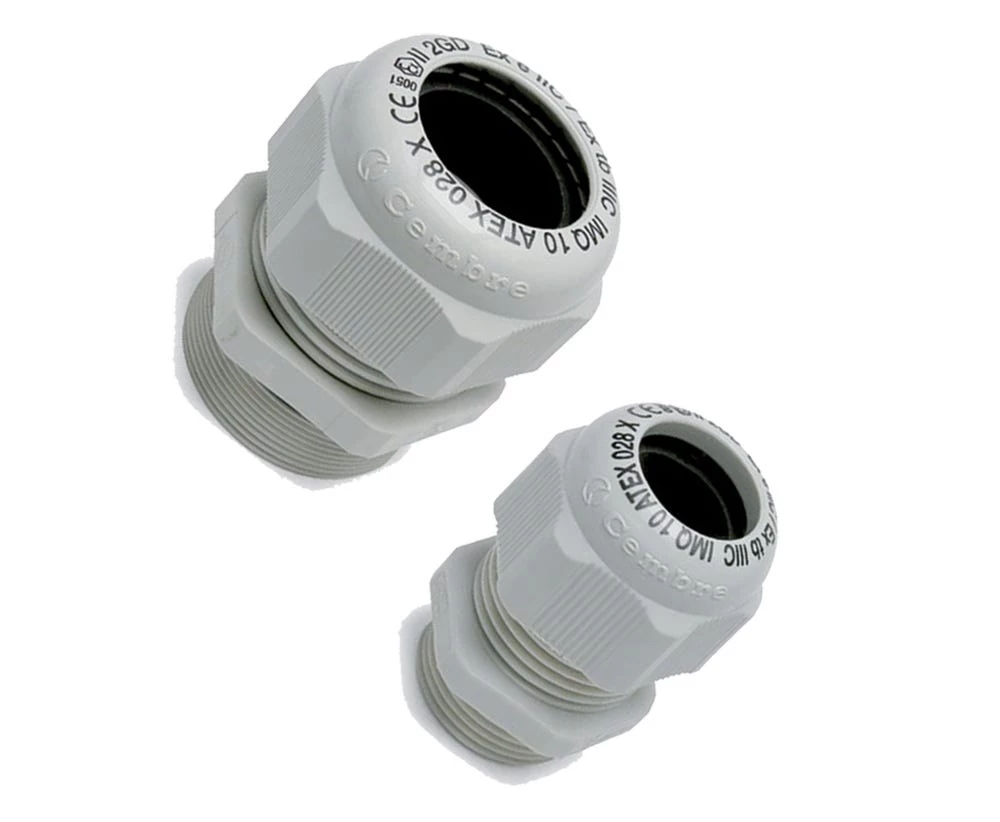

MAXIblock 4901 series glands are designed for increased safety in potentially explosive atmospheres where gas or combustible dust are present.

The MAXIblock range is comprised of a nylon body made from light grey polyamide PA6.6 and a neoprene sealing ring. The range features a 1.5 pitch and extended thread.

With an ingress protection rating of IP65, these hazardous area glands are dust tight and intended for fixed installations of cables into control panels or other engineering applications.

To assemble, begin by screwing the cable gland body into the housing or tightening with lock nut. Then install the cable and tighten the cap. View the product data sheet for further information.

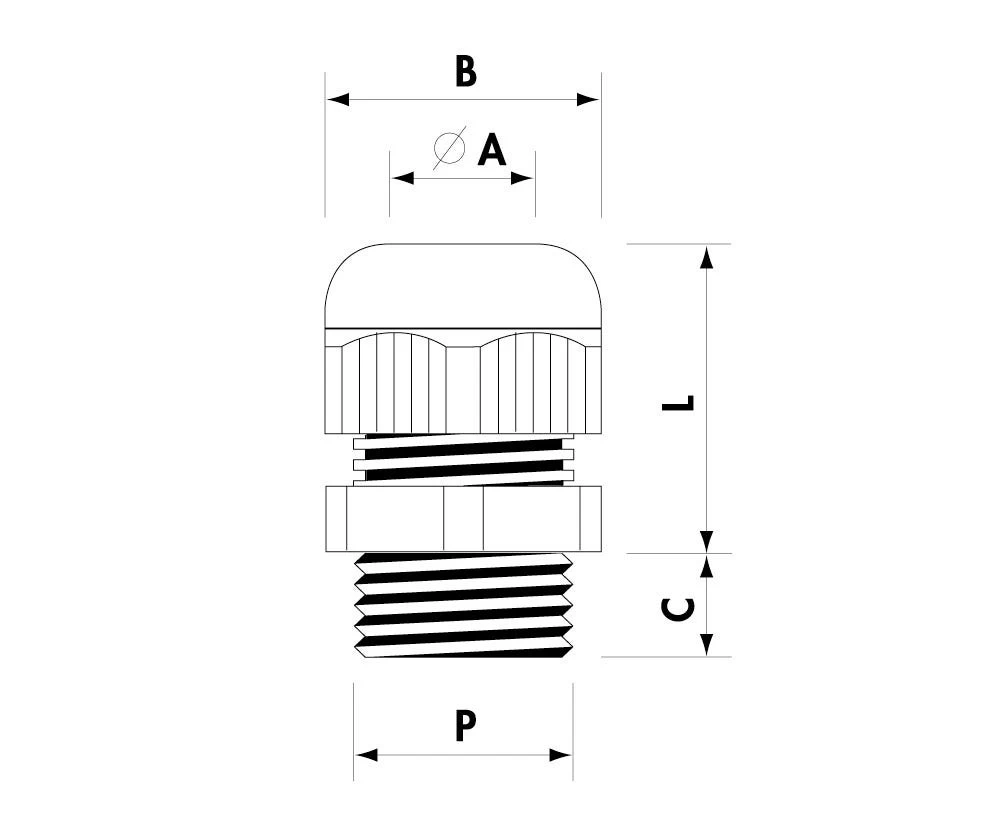

Dimensions

(P): M16 x 1.5
Fixed Hole Dia.: 16.2mm
(A) Dia. Min-Max: 6.5-10mm
(B) Spanner: 19mm
(C): 15mm
(L) Min-Max: 22-27mm

Available in thread sizes from M12 to M63. Refer to the product data sheet for a full list of dimensions, or view product range to select another size.

Technical Data

Ex e IIC/Ex tbIIIC safety levels
Temperature range: -20 degrees Celsius to +75 degrees Celsius
Colour: Light grey RAL 7035
Conformant Standards: EN 60079-0: 2009 EN 60079-7: 2007 EN 60079-31: 2009
Degree of protection: IP65
Torque setting: 5 Nm
