Sale!

Gland M32 Maxibrass NP Ex E L9mm IP65 - Image 2

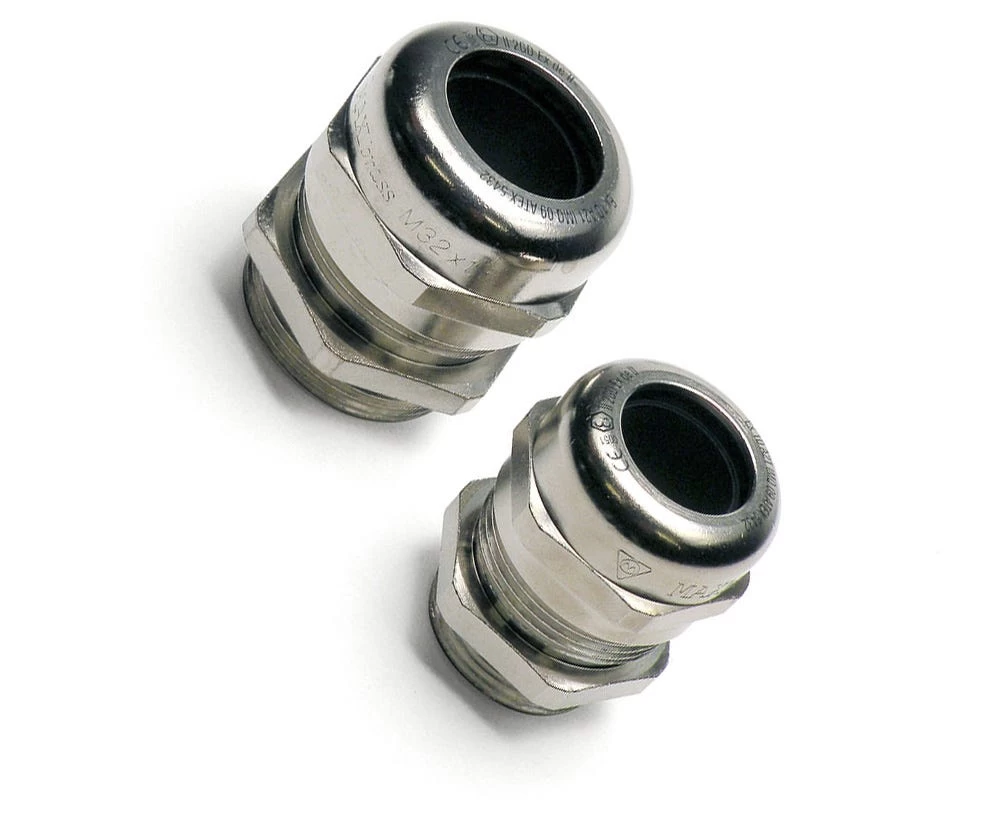

Gland M32 Maxibrass NP Ex E L9mm IP65

Original price was: $47.96.Current price is: $33.57.

Designed for fixed installations of cables in explosive atmosphere with the presence of gas or combustible dust
Ex e IIC / Ex tbIIIC safety levels
Material: Nickle plated brass with neoprene seal ring
Rating: IP65 protection
Operating Temperature: -25 to 75 degrees Celsius

SKU: C5900M32NEX Categories: Cable & Wire Management, Glands, Strain Relief & Grommets Tag: CEMBRE

Uncompromising quality, every time.
Discover a world of quality products.
Multiple payment options for secure shopping with SSL
100% Quality Promise

Description
Reviews (0)

Product Description

The MAXIbrass range of metal cable glands are designed for control panels and engineering applications in hazardous areas. The product prevents the entry of gas or combustible dust into equipment enclosures.

The body is comprised of nickel plated brass, a material preferred because of its anti-corrosive properties. Also included is a PA6.6 polyamide cable grip insert, neoprene sealing ring and a factory fitted nitrile O-ring.

When fitting MAXIbrass glands it is important to only use suitable tools and apply the recommended torque to ensure the degree of protection is maintained. Refer to the product data sheet for more information.

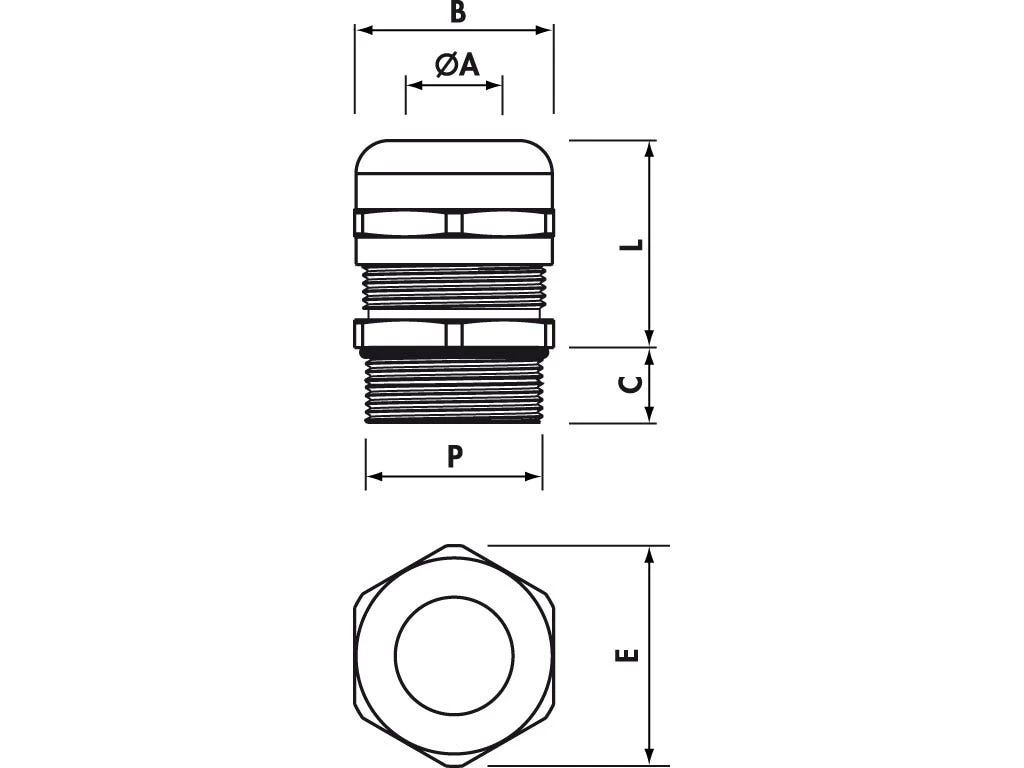

Dimensions

(P): M32 x 1.5
Fixed Hole Dia.: 32.5mm
(A) Dia. Min-Max: 14-21mm
(B) Spanner: 36mm
(C): 9mm
(L) Min-Max: 27-34mm
Torque Setting: 12Nm

Technical Data

Conformant Standards: EN 60079-0: 2009 EN 60079-7: 2007 EN 60079-31: 2009 Protection: IP65
Temperature range: -25 – +75 degrees Celsius (continuous)
Safety Level: Ex e IIC/Ex tb IIIC

Body: Nickel plated brass
Cable grip insert: Polyamide PA6.6
Sealing ring: Neoprene
O-ring: Nitrile 70 sh A
