Heatshrink Dual Wall Glue L 24-8 1.2M

Product Description

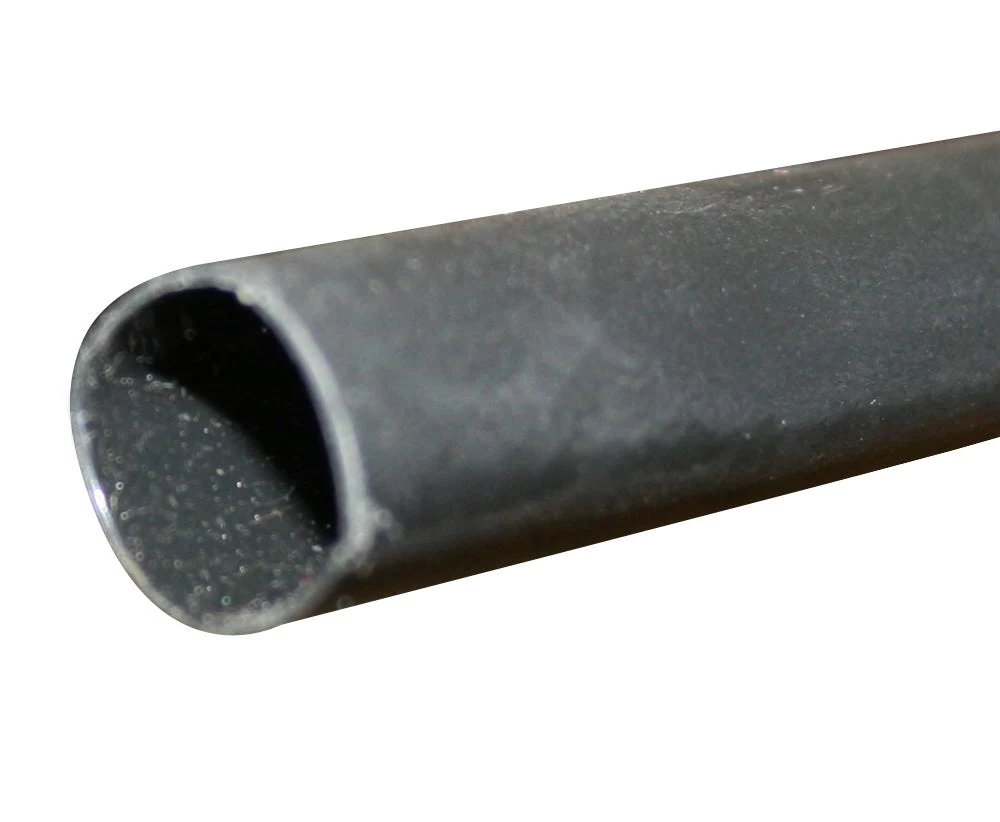

XDW Dual Walled Flexible Glue Lined Heatshrink 24MM Black 1.2M

XDW is a thin walled heatshrink tube with a glue lined inner surface. It is made from a single extrusion of polyolefin that is partially irradiated and as such is commonly referred to as ‘dual walled’.

XDW Dual Walled Flexible Glue Lined Heatshrink Features
• Highly flexible
• Very high shrink ratio 3:1
• Flame retarded
• Good mechanical adhesion

This is a material with many applications in the electrical and mechanical protection areas. Since the glue holds the tubing in place it is commonly used for brake and fuel pipe protection in the automotive industry. Typical electrical applications are strain relief on cords, and insulation repair. In general the tube is not recommended for waterproofing since the glue layer is primarily a mechanical adhesion and is thin. Use SMDW for fail safe waterproof joints.

Technical Data

Conformant Standards: UL: MIL-1-23053/4: JIS
Material: Dual wall, flexible, flame retarded polyolefin with modified polyamide adhesive sealant
Continuous operating temp: -55°C to +110°C
Shrinkage temp: Starts at 90°C, completed at 125°C
Tensile strength: 10.5 MPa
Elongation at break point: 200%
Longitudinal shrinkage: 15%
Breakdown voltage: 20 kV/mm wall thickness
Volume resistivity: 1.0 x 1014 ohm cm
Water absorption: 0.5%
Flammability: All tubing flame test: pass
UV resistance: Passed-ISO 1408
Voltage rating: 600 V
