Heatshrink End Cap 145-60MM

Product Description

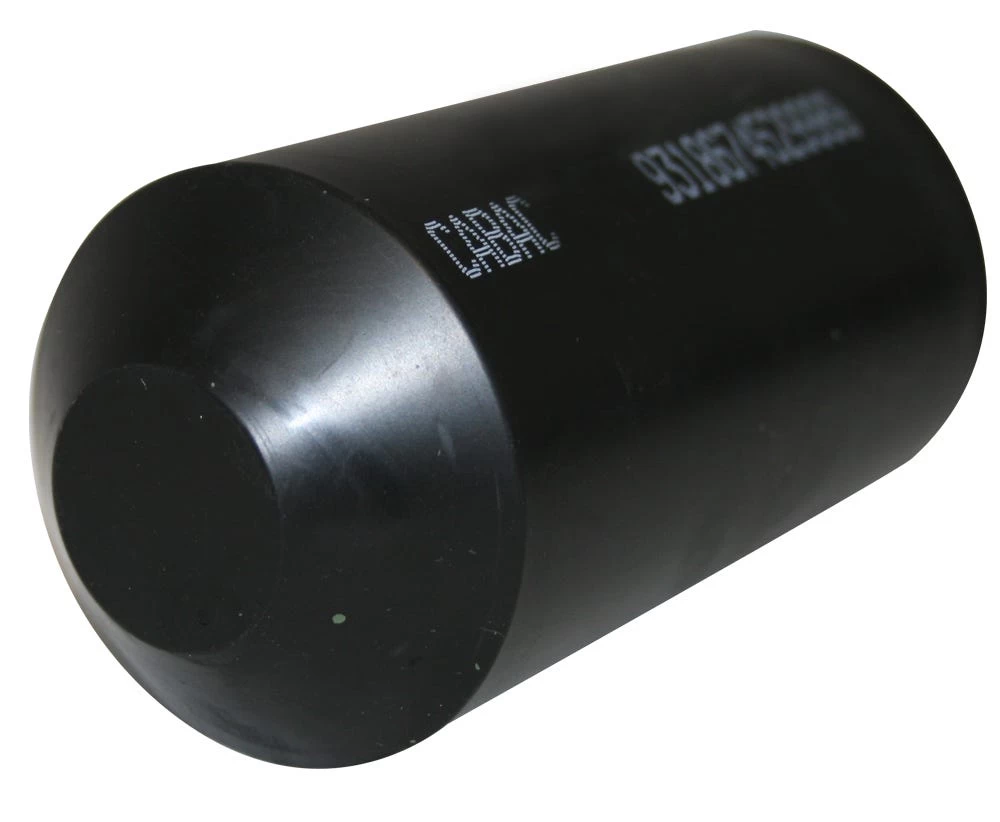

Heatshrink End Cap 145-60MM

Heatshrink end caps are used for sealing cable ends during installation or storage. They are made from crosslinked polyolefin and have a hot melt glue liner that bonds the cap to the cable jacket.

Heatshrink End Cap Features
• Quick reliable seal of cable ends
• Watertight and unlimited storage life
• Highly resistant to ultraviolet rays, aggressive soils, chemicals and corrosion

Instructions

The end cap should be shrunk onto the cable end starting the shrinkage process from the closed end. Once shrink is complete glue should extrude from the edges of the cap.

Technical Data

Conformant Standards: IEC:VDE:DIN
Material: Cross-linked polyolefin with thermoplastic sealant
Continuous Operating Temp: -35°C to +110°C
Shrinkage Temp: Starts 105°C Completed 135–
Tensile Strength: 12MPa
Elongation at Break Point: 500%
Longtitudinal Shrinkage: 10%
Breakdown Voltage: 10kV/mm wall thickness
Volume Resistivity: 1.0 x 1014 ohms cm
Water Absorption: <0.15%
Flammability: Do not use in flame prone areas
UV Resistance: Passed ISO 1408

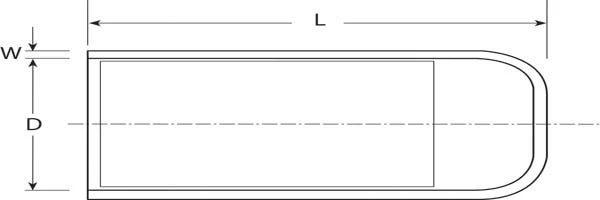

Line drawing available. See Technical Data.
