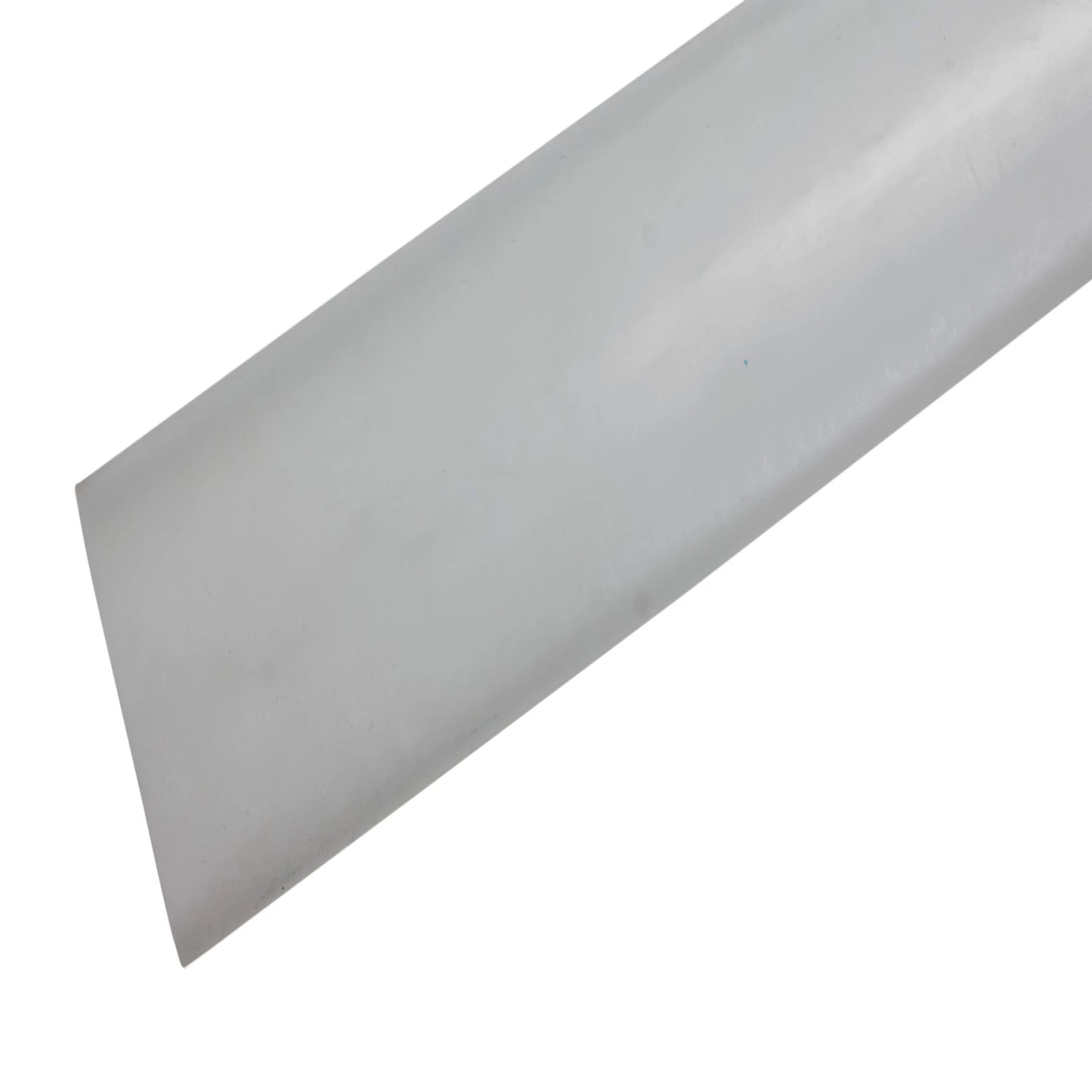

Heatshrink Thin Wall 102 TO 50.8MM Clear

Product Description

XLP Heatshrink Thin Wall 102mm Clear – Reel

XLP tubing is a chemically cross-linked tubing that conforms to MIL-1-23053/5 class 3. It will withstand -75°C to 135°C for normal operating conditions.

Tubing can easily be shrunk with a heat gun or a heat tunnel.

NOTE: All tubing in this range are flame retardant except clear, which is flammable and conforms to MIL-1-23053/5 Class 2.

XLP Heat Shrink Thin Wall Features
• Highly flexible
• Flame retardant (Except Clear)
• Abrasion and impact resistant
• For use in all electrical and electronic applications
• In-house cutting facility available for cut sleeves
• Full range 1.5mm to 125mm diameter with 2:1 shrink
• Available in most colours on reels or 4ft (1.2m) lengths
• Range is UV stabilised (Except Clear)

XLP tubing has numerous uses in the electrical and associated industries, including insulation, colour coding and mechanical protection.

Technical Data

Compliant Standards: UL224 VW1 File No. E366157

Conformant Standards: MIL-1-23053/5; JIS

Material: Chemically, cross-linked, thermally stabilised flame retardant polyolefin

Continuous Operating Temperature: -75°C to +135°C

Shrinkage temp: >100°C

Longitudinal shrinkage: <5%

Tensile strength: 16 MPa

Breakdown voltage: 25 kV/mm wall thickness

Volume resistivity: 1.0 x 1014 ohm cm

Elongation at break point: 400%

Water absorption: 0.15% max

Flammability: Passed ASTM-D-2671

UV stability: All tubing is stable (Except Clear)

Voltage rating: 600V

Pre-cut service available for large quantities of tubing to customer specifications. Preferred supply option is a full reel of tubing. If your requirements are less than a full reel, please consider buying 4ft lengths.
