Hypertec R19 Server Rack 45RU 600W 1000D 2188H

Product Description

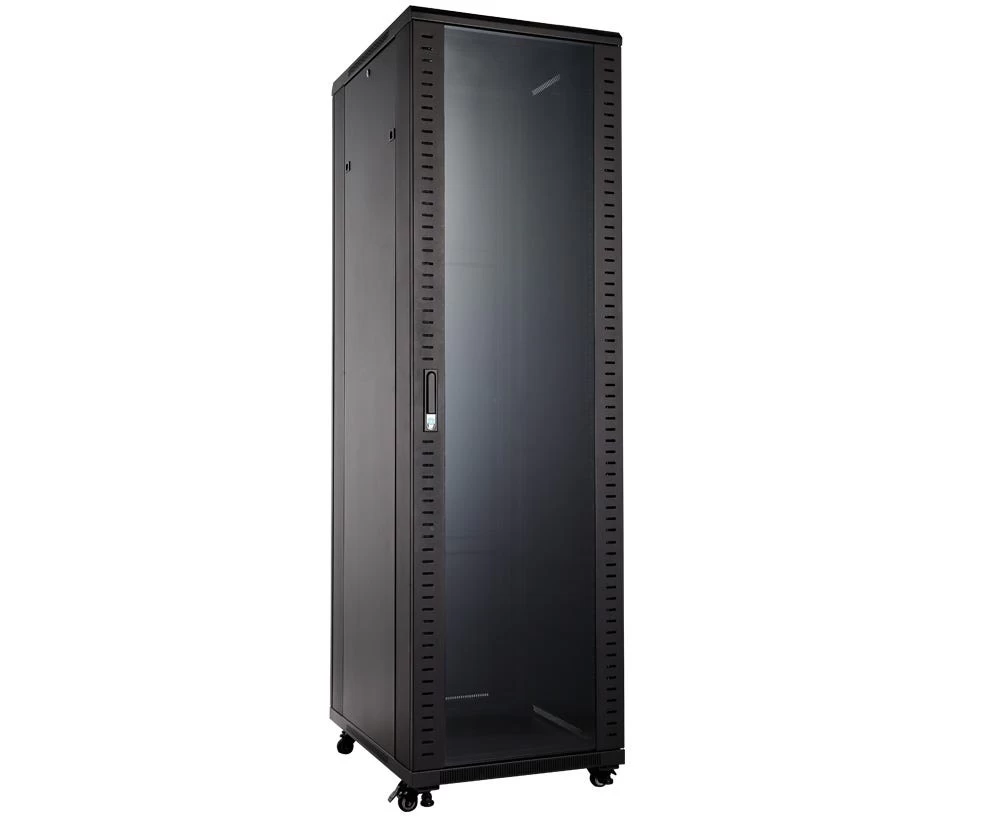

Hypertec S-Series 45RU 600 Wide 1000 Deep Server Rack

Our “S-Series” range of Hypertec’s 19″ Floor Mount Server Racks cater for effortless installation of both the cabinet and your valuable equipment while maintaining and accessing equipment is made easy with Hypertec’s wide range of rack accessories.

Featuring a sturdy frame manufactured to precise dimensions from SPCC high quality cold rolled steel with a thickness of 2mm for the rails, 1.2mm for the frame and 1.0mm side panels, making Hypertec’s “S-Series” server racks light without comprimising on strength.

Construction

• Sturdy frame made from high quality cold rolled steel
• Rails 2mm, Frame and Doors 1.2mm, Side Panels 1mm
• Colour – Black RAL 9005

Glass Door

• Fully tempered glass 5mm
• Clear view of inside server cabinet
• Earth lead connected to door

Quick release hinge
Perforated doors available as optional item

Rear Bifold Doors

• Perforated for increased airflow
• Bi-fold doors save space when opening
• Earth leads connected
• Quick release hinges

Side Panels

• Removable side panels
• Keyed cam locks included

Rail

• RU marking printed on the front and rear rails for easy placement of components
• Max load 800kg
• Easy to adjust rails
• Numerous accessories available for rail mounting

Cable Access

• Generous cable access on top (front and rear)
• Bottom cable access via 5 removable cable entry plates

Air Flow

• Fan box included with all floor mount server racks
• 600mm deep racks – 2 fans
• 800mm and deeper racks – 4 fans
• Fan box mounted on inside top rack

PDU

• 6-way 10A horizontal rail mounted
• Australian 3 pin plug and sockets
• PDU range available as optional extra

Cable Management

• 120mm between front door and rail for cable management
• Horizontal cable management accessories available
• Vertical cable management accessories available
• 800mm wide server racks feature built in vertical cable
  management

Pallet Mounting

• Secured to and shipped on a pallet for safe and easy transportation
• Attached to pallet via brackets – quick and easy to remove once on-site

Floor Mounting

• Four heavy duty castors (2 with brackets) fitted for positioning rack on site
• Four adjustable levelling feet

Shelf Accessories

• Cantilever trays
• Fixed shelves
• Sliding shelves
• Storage drawer
