Ict Term. Spade Blue 3mm

Product Description

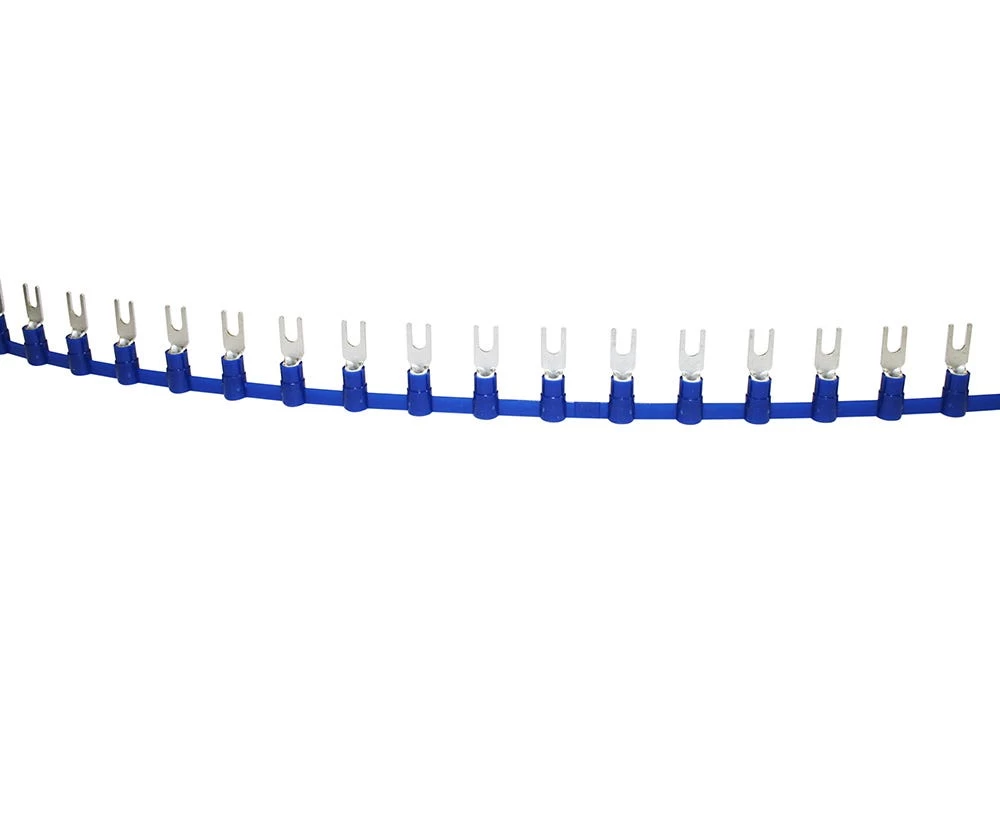

ICT Chain Pre-insulated Terminal Spade 3MM Blue

ICT pre-insulated chain terminals provide fast termination of a conductor. Conventional brass chain terminals, require insulation to be added as a secondary operation, however ICT does this all in one.

ICT Chain Pre-insulated Terminal Features
• Crimp rates of 1200 terminals per hour, compared to 100 per hour by hand
• Funnel entry terminals allow easy conductor entry, minimising substandard crimps
• Significant labour savings, and minimising of repetitive strain injuries (RSI)
• Conductivity 99.9% IACS
• Voltage rating 300V
• Temperature rating 105°C

Ordering Information

Note: ICT terminals can be ordered only in full reel quantities. The fully insulated Quick Connect Range has a nylon insulation and must be kept sealed in a plastic bag when not in use, because nylon is hydroscopic.

Ring Terminal IRT

Stud SizePart No.Reel QtyApp Type Part No.Reel QtyApp Type Part No.Reel QtyApp Type

M3IRT1.25-31500NC11A IRT2-31500NC12A

M4IRT1.25-41500NC11A IRT2-41500NC12A IRT5.5-41000NC13A

M5IRT1.25-51500NC11A IRT2-51500NC12A IRT5.5-51000NC13A

M6IRT1.25-61500NC11A IRT2-61500NC12A IRT5.5-61000NC13A

M8IRT1.25-81500NC11A IRT2-81500NC12A IRT5.5-81000NC13A

M10 IRT5.5-101000NC13A

Forked Spade IFS

Stud SizePart No.Reel QtyApp Type Part No.Reel QtyApp Type Part No.Reel QtyApp Type

M3IFS1.25-31500NC11A IFS2-31500NC12A IFS5.5-3

M4IFS1.25-41500NC11A IFS2-41500NC12A IFS5.5-41000NC13A

M5IFS1.25-51500NC11A IFS2-51500NC12A IFS5.5-51000NC13A

M6 IFS5.5-61000NC13A

Pin Connector IPC

Part No.Reel QtyApp Type Part No.Reel QtyApp Type Part No.Reel QtyApp Type

IPC1.251500NC11A IPC21500 NC12A IPC5.5-51000NC13A

Flat Blade IFB

Part No.Reel QtyApp Type Part No.Reel QtyApp Type Part No.Reel QtyApp Type

IFB1.25-31500NC11A IFB2-31500 NC12A IFB5.5-51000NC13A

Quick Connector IQC

Tab SizePart No.Reel QtyApp Type Part No.Reel QtyApp Type Part No.Reel QtyApp Type

2.8 x 0.5IQC1.25-2.8/.51500NC11A IQC2-2.8/.51500NC12A

2.8 x 0.8IQC1.25-2.81500NC11A IQC2-2.81500NC12A

4.8 x 0.5IQC1.25-4.8/.51500NC11A

4.8 x 0.8IQC1.25-4.81500NC11A IQC2-4.81500NC12A

6.4 x 0.8IQC1.25-6.41500NC11A IQC2-6.41500NC12A IQC5.5-6.41000NC13A

Fully Insulated Quick Connector IFIQC

Tab SizePart No.Reel QtyApp Type Part No.Reel QtyApp Type Part No.Reel QtyApp Type

4.8 x 0.8IFIQC1.25-4.81500NC11B IFIQC2-4.81500NC12B

6.4 x 0.8IFIQC1.25-6.41000NC11C IFIQC2-6.41000NC12C

Male Tab IMT

Tab SizePart No.Reel QtyApp Type Part No.Reel QtyApp Type Part No.Reel QtyApp Type

6.4 x 0.8IMT1.25-6.41500NC11A IMT2-6.41500 NC12A

Special Terminals (0.3mm–) also available

Part No.ReelApplicator

Spade terminal M3IFS0.5-32000NC10A

Pin ConnectorIPC0.52000NC10A
