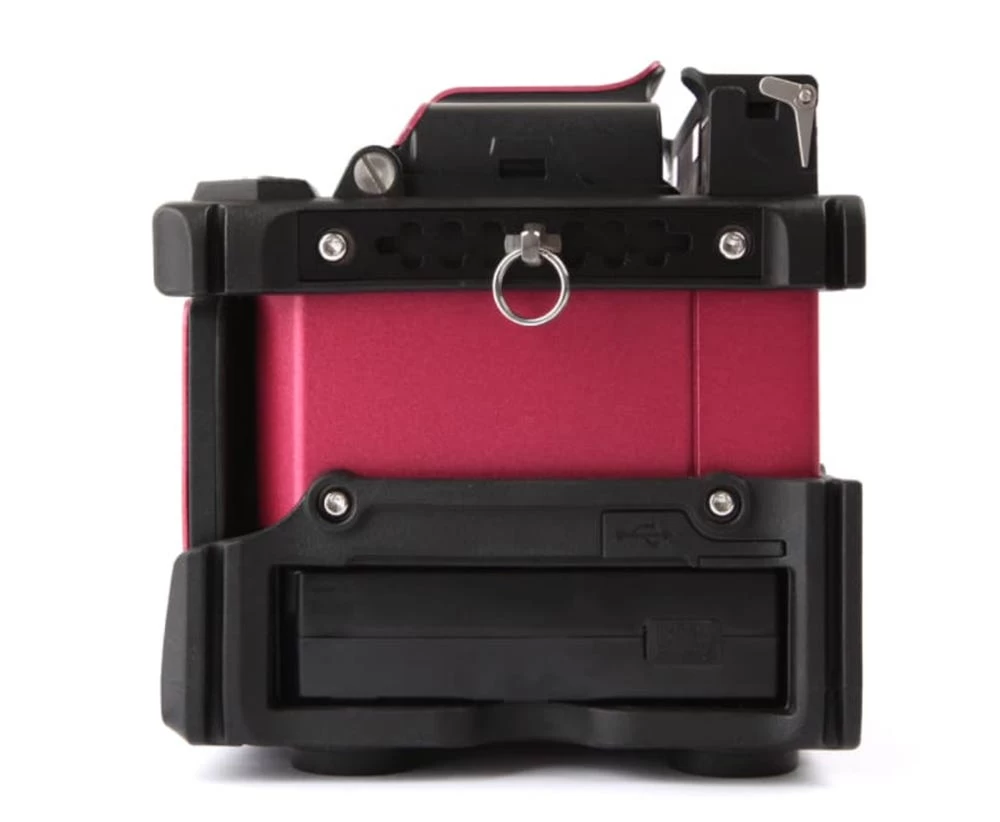

INNO Fusion Splicer - M7 + Cleaver - Image 2

INNO Fusion Splicer - M7 + Cleaver - Image 3

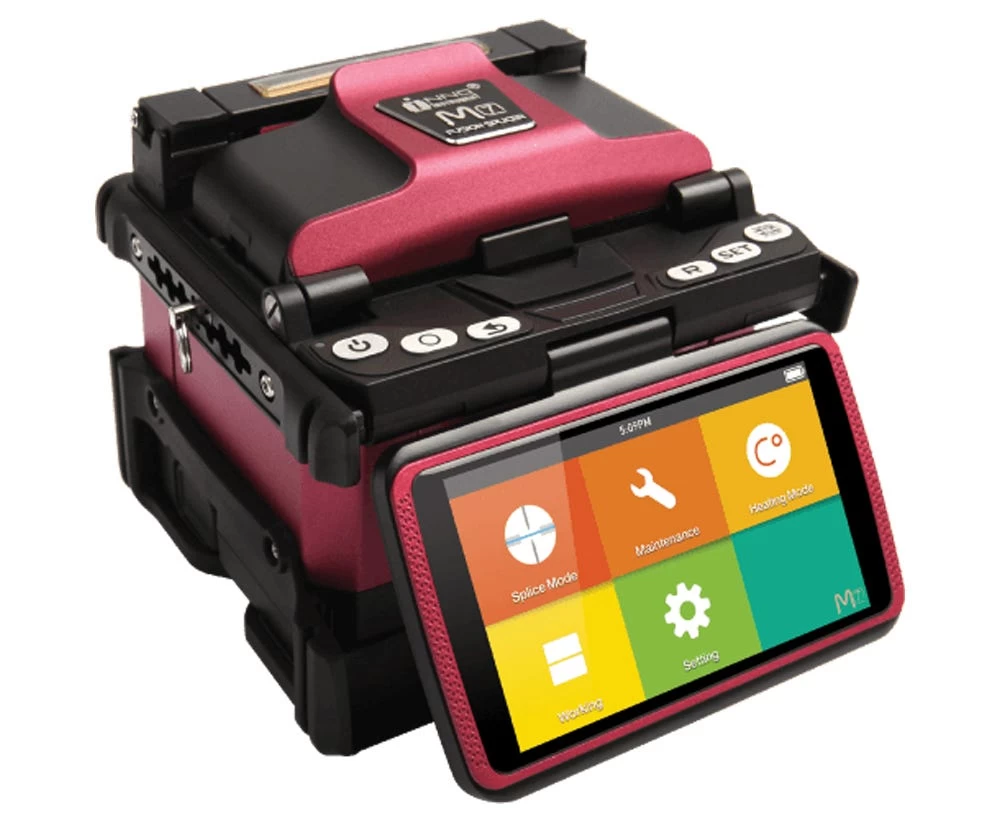

INNO Fusion Splicer – M7 + Cleaver

Original price was: $12.00.Current price is: $8.40.

4.3″ Color LCD Touch Screen, Double Tapping (Zoom in & out)
Truly light weight and handy size
Outstanding magnification and resolution
Adjustable strap hanger
Active V-Groove clad alignment splicing

SKU: SPLICER-M7 Categories: Fibre Networking & Data Comms, Fibre Optic Splicing & Cleaning Tag: INNO

Uncompromising quality, every time.
Discover a world of quality products.
Multiple payment options for secure shopping with SSL
100% Quality Promise

Product Description

M7, an active clad-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market.

This small but accurate fusion splicer inherits many remarkable functionalities from sister products.

M7’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users.

Moreover, the adjustable strap hanger make users to customize M7 for their working condition.

Alignment Method	Active V-Groove Clad Alignment
Applicable Fibres	SM (ITU-T G.652 & G.657) / MM (G.651) / DS (G.653) / NZDS (G.655)
Battery Capacity mAh	3000
Cleaved Length (mm)	10 – 16
Cleaver	V7
Compatible Fibre in (mm)	0.25 – 3.0
Cycles Per Charge (Splice + Heat)	110
Display	4.3 Inch Color LCD, Touch Screen
Heating Mode Max	30
Heating Time in Seconds	20
Magnification Time	300x, 400x (partial)
Number of Fibres	1
Results Storage	10,000 records
Splice Time in Seconds	12
Splice Mode	Max 100
Typical Splice Loss	SM: 0.03dB / MM: 0.02dB
