INNO Fusion Splicer – M9 + Cleaver
Original price was: $12.00.$8.40Current price is: $8.40.
- State-of-the-art fast splicing speed of 5.5s
- Double Tapping (Zoom in & out)
- 4.3″ high resolution LCD Touch screen with GUI display
- Dual operating mode (Touch screen & button)
- Core Alignment splicing method
- Uncompromising quality, every time.
- Discover a world of quality products.
- Multiple payment options for secure shopping with SSL
- 100% Quality Promise
Product Description
M9, a core-alignment splicer with ultra-portable design, is the most efficient fusion splicer in the market.
This compact and sophisticated fusion splicer inherits many remarkable functionalities from sister products.

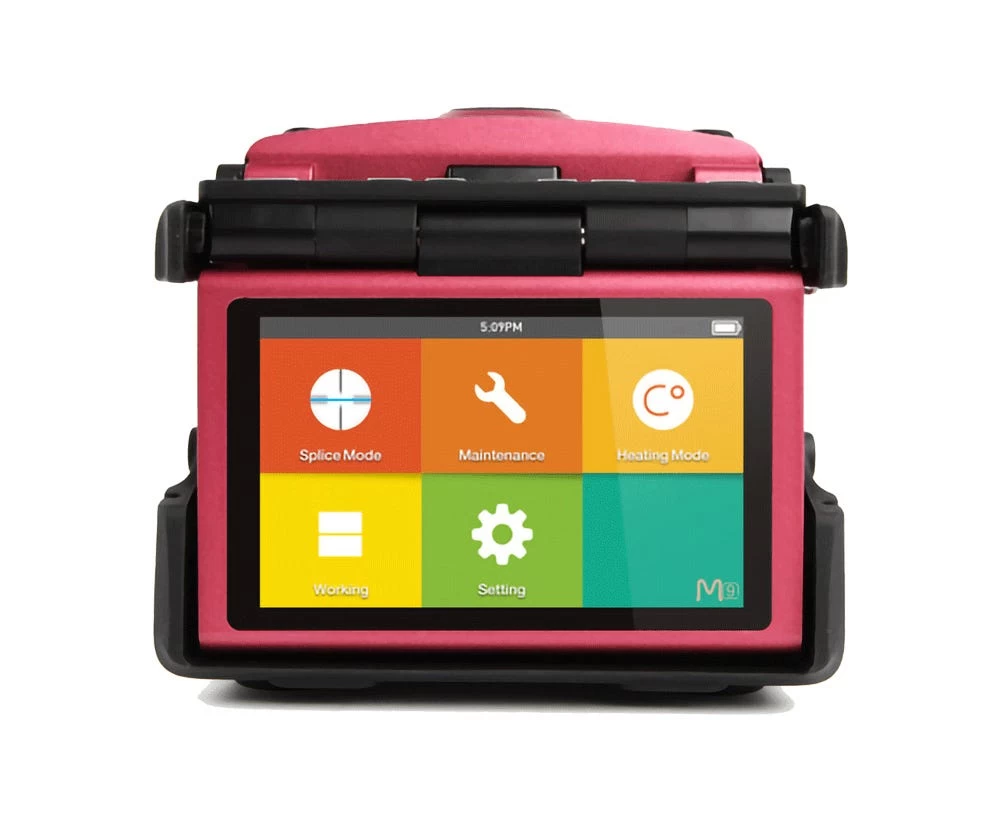

M9’s 4.3 inch high-resolution color LCD touch screen with user-friendly
intuitive GUI(Graphic User Interface) offers large and clear fiber images to users.
intuitive GUI(Graphic User Interface) offers large and clear fiber images to users.
By double-tapping the screen, users can enlarge / reduce the
screen up to 400X and check the optical fiber with clear images.
screen up to 400X and check the optical fiber with clear images.

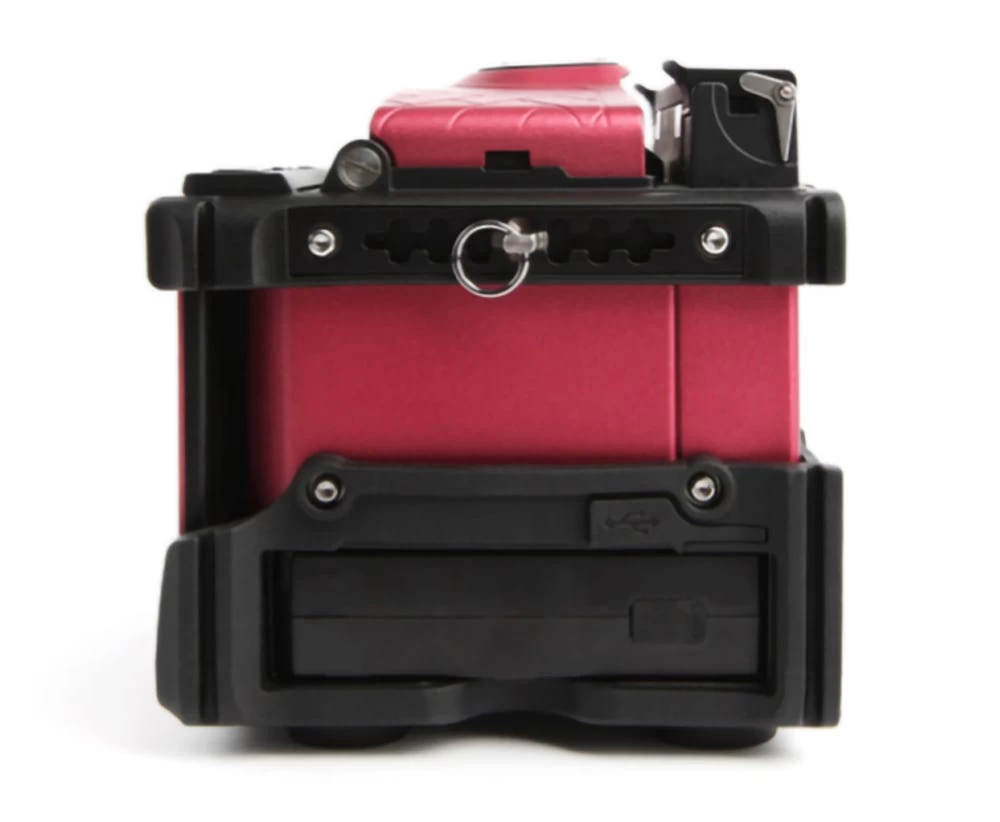

With M9’s adjustable strap hanger users can customize their working station.
M9 is genuinely world’s most efficient hand-held fusion splicer in the telecommunications industry.
| Alignment Method | Core Alignment |
|---|---|
| Applicable Fibres | SM (ITU-T G.652 & G.657) / MM (G.651) / DS (G.653) / NZDS (G.655) |
| Battery Capacity mAh | 3000 |
| Cleaved Length (mm) | 10 – 16 |
| Cleaver | V7 |
| Compatible Fibre in (mm) | 0.25 – 3.0 |
| Cycles Per Charge (Splice + Heat) | 110 |
| Display | 4.3 Inch Color LCD, Touch Screen |
| Heating Mode Max | 32 |
| Heating Time in Seconds | 20 |
| Magnification Time | 300x, 400x (partial) |
| Number of Fibres | 1 |
| Results Storage | 10,000 records |
| Splice Time in Seconds | 12 Superfast mode: 5.5 |
| Splice Mode | Max 128 |
| Typical Splice Loss | SM: 0.03dB / MM: 0.02dB |
