Metal Gland 20mm Cable 6.1-11.6

Product Description

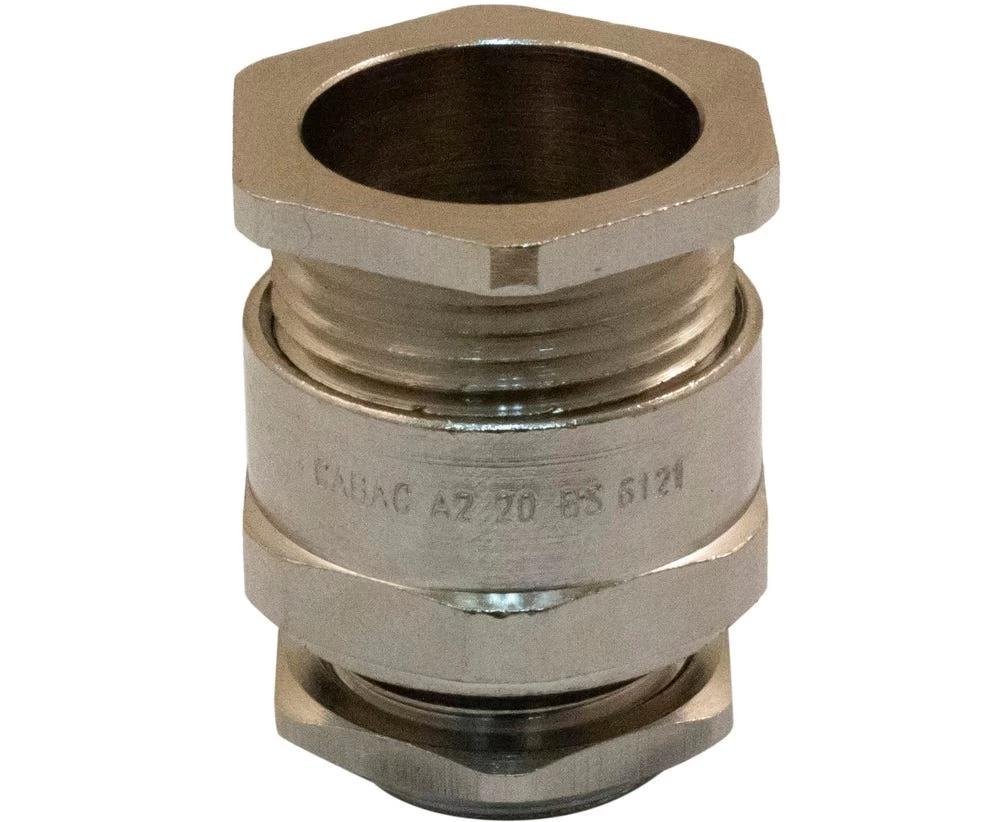

The CABAC A2 range of glands are ideal for general purpose use with unarmoured PVC and XLPE sheathed cables.

These glands are rated IP66, meaning they are dust tight and weather resistant. The product features a nickel-plated brass body which protects against the threat of corrosion and a neoprene seal that clamps onto the sheath of the cable.

Locknut included.

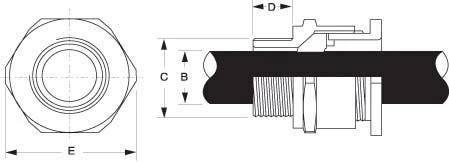

Dimensions

Mounting Thread Diameter (C): 20mm
Thread Length (D): 10mm
Min Cable Range (B): 6.1mm
Max Cable Range (B): 11.6mm
Dim. Across Corners (E): 26.5mm

Shroud: SH1

Available in a variety of other sizes, view the product range for more information.

Tip: When selecting a cable gland, it is essential to keep in mind that cable dimensions vary by manufacturer and insulation type. To determine what size you require, first establish the outside diameter of the cable by measuring it or by referring to the cable manufacturers handbook. Once you have confirmed the size of your cable, refer to the product data sheet for a gland selection guide.

Technical Data

Conforms to BS6121: Part 1:2005

Body: Brass
Seal: Neoprene rubber
Finish: Nickel plated
