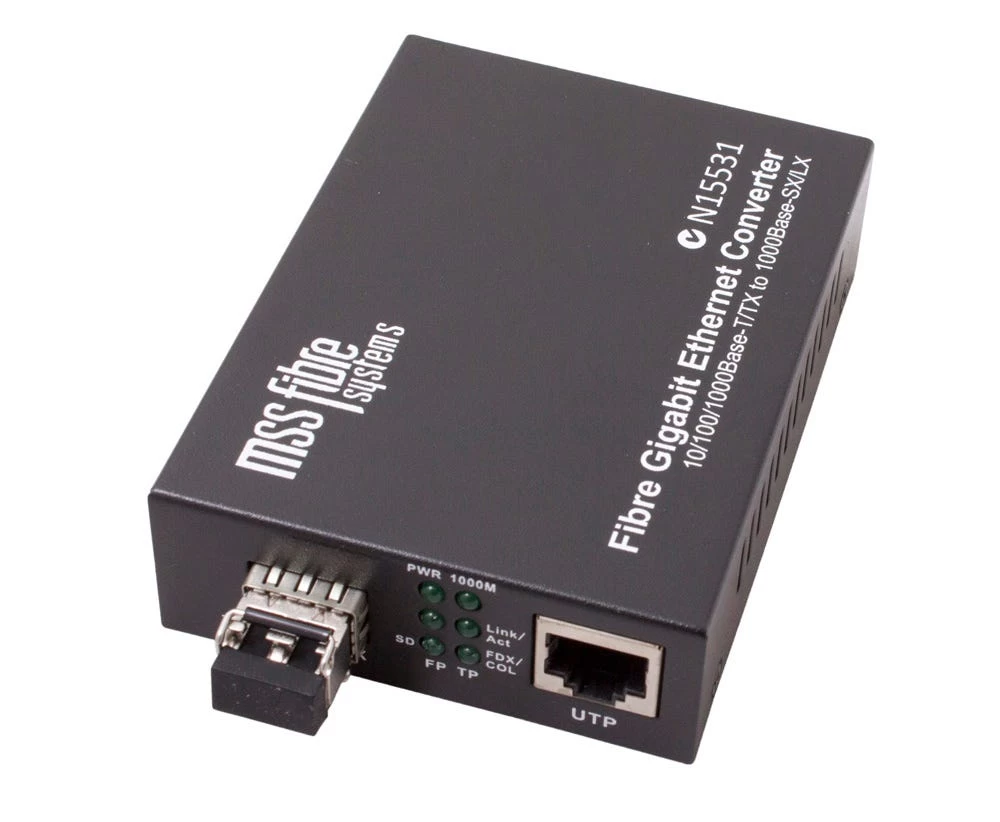

MSS Fibre 1000B-T To 1000B-SX MM 850NM LC 550MTR Media Convertor

Product Description

1000Base-TX to 1000Base-SX Multimode 850NM LC Fibre Converter (550m)

Media Converters provide an intelligent solution for fibre optic connectivity where simplicity, low cost, and minimum footprint are the primary considerations. The 10/100/1000 Media Converter provides an intelligent solution for long distance connections between legacy 10BaseT and 100BaseTX networks and the newer 1000Base Gigabit Ethernet networks.

The built-in 10/100/100 converter enables the fibre cable connection to operate at 1000 Mbps connected to either a 10BaseT, 100BaseTX or a 1000BaseT network, while remaining completely 1000BaseSX standard-compliant for the fibre optic connection. The fibre connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or half duplex hub. Each Media Converter provides a 10/100/1000BaseT/ TX auto-negotiating RJ- 45 twisted-pair connector port featuring store-and-forward switching architecture. The built-in switch does the net work segmentation to provide the maximum fibre distance. Auto- MDIX capability on the twisted-pair port allows convenient connection.

Media Converter Features

– Automatic identification of MDI/MDI-X cross line
– 10/100/100MBPS port with full half duplex auto-negotiation
– Back pressure flow control for full duplex
– Converter mode with auto-change forward (switch) function

Applications

– LAN
– FTTx
– Telecommunication networks
