P Clip Nylon 4.8 Mm Cable Natural

Product Description

Nylon P Clip Natural to suit 4.8mm cable

CABAC P clips provide an economical, secure way to mount cables and looms to just about any surface, including walls and cabinets.

Our natural P clips are manufactured from nylon 66, a durable material that suits indoor applications. The clip edges are radiused to prevent them from damaging the cable or bundle.

Part number PCN-5 will suit cables or bundles with a maximum diameter of 4.8mm. The cable, loom or harness is simply slipped into the clip, and is then mounted to the surface using a suitable fastener. Each P clip size has a 4.6mm mounting hole that allows it to be secured to a surface using a screw or bolt.

Product Dimensions

Max Cable Dia. (A): 4.8mm
Width (B): 9.6mm
Mount (C): 4.6mm
(D): 10.5mm
(E): 19.8mm
(F): 1.4mm

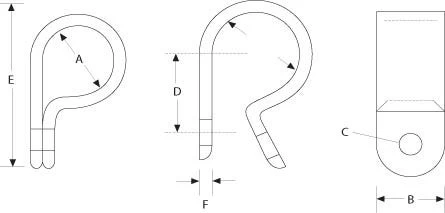

Line drawing available for reference, see Additional Information.

We have a range of other sizes available for cable diameters up to 12.7mm, refer to the product datasheet for a selection chart.

Technical Data

Material: Nylon 66 94V-2 UL approved
Max Operating Temperature: -40 to +90 degrees Celsius
Colour: Natural
