Sale!

Pre-Insulated Terminal Crimper Rd/Bl/Yl - Image 2

Pre-Insulated Terminal Crimper Rd/Bl/Yl

Original price was: $129.50.Current price is: $90.65.

Low cost ratchet terminal crimper for red, blue and yellow pre-insulated terminals
Ratchet operation ensures correct crimp and reduced hand effort
Max capacity is 6mm2 when crimping flexible yellow conductors

SKU: KTC1 Categories: Hand Tools, Tools and Equipment Tag: CABAC

Uncompromising quality, every time.
Discover a world of quality products.
Multiple payment options for secure shopping with SSL
100% Quality Promise

Product Description

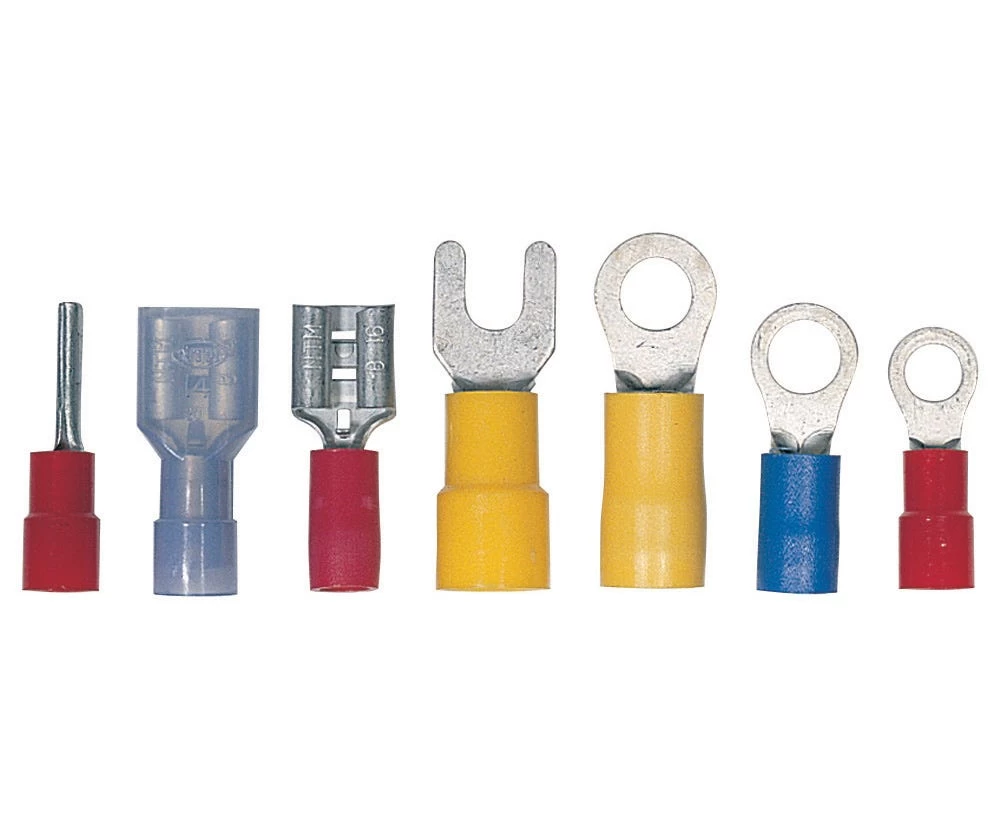

The budget pre-insulated terminal ratchet style crimper is for use with red, blue and yellow pre-insulated terminals.

The ratchet operation ensures correct crimp at reduced hand effort.

Note: When crimping flexible conductors in yellow terminals the maximum capacity of the tool is 6mm2.

Technical Data

Length: 230mm
Weight: 540g

The following interchangeable dies are available to purchase individually:

LY-03C	Pre-insulated 0.5-6mm2
LY-04C	Pre-insulated 0.14-6mm2
LY-10	Un-insulated and lugs 1.5-8mm2
LY-03B	Roll crimp open barrel 0.5-6mm2
LY-04WF	Bootlace Ferrule 0.5-4mm2
LY-06WF	Bootlace Ferrule 0.75-6mm2
LY-16WF	Pre-Bootlace Ferrule 6-16mm2
LY-35WF	Bootlace Ferrule 16-35mm2
LY-50WF	Bootlace Ferrule 25-50mm2
