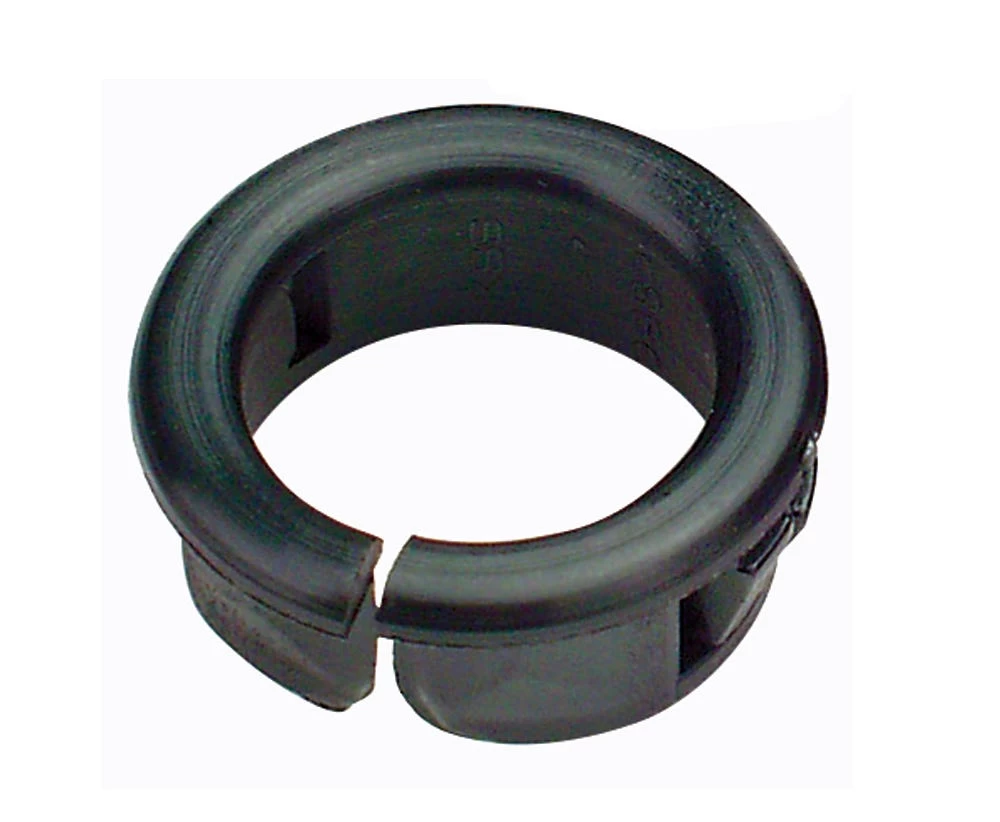

Split Nylon Snap Bush 16mm

Product Description

CABAC split-style nylon snap bushing is designed to protect cables from rough, raw edges on panel holes. As the name suggests, snap bushing features self-contained teeth that snap in place to provide a secure fit. Once installed, the grommet creates a smooth surface that prevents the cable from being cut or chafed.

Split bushing has several advantages over regular fixed bushing. The split allows the grommet to be fitted to a range of panel hole sizes, so precision is not as critical. Additionally, the split design makes it possible for the bushing to be retrofitted to cords or wires that are already in place.

Product Dimensions

Chassis Thickness: 0.8-3.2mm
Hole Size (A): 15.9mm
Inner Diameter (B): 11.5mm
Outer Diameter (C): 17.7mm
Height (L): 10.3mm

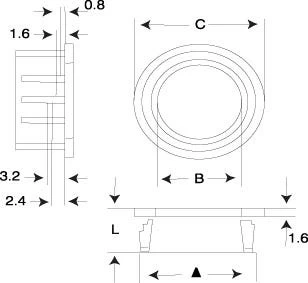

Line drawing available for reference, see Additional Information.

Technical Data

Material: Nylon 66 UL, 94 V-2
Colour: Black
