Splitter HDMI 4 Port

Product Description

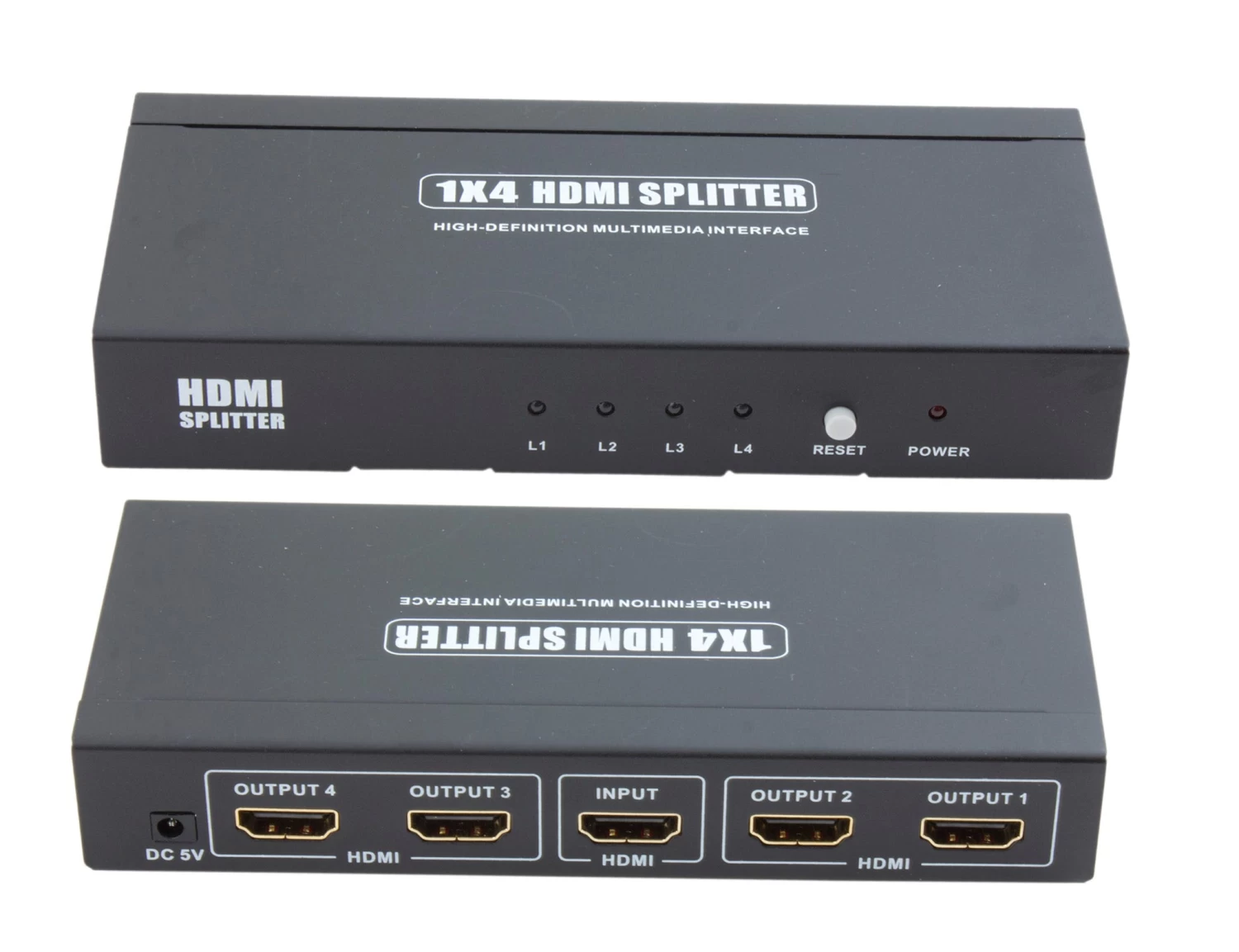

HDMI Splitter 4 x Ports

The HDMI Splitter allows a HDMI source to run up to 4 x HDMI equipped display units.

HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed digital audio/video data from a HDMI-compliant source device to a compatible digital audio/video display device. A digital audio/video source for HDMI can include a HDMI-compliant set-top box, DVD player, HD DVD player, Blu-ray Disc player, camcorder, personal computer, video game console and AV receiver. A HDMI-compliant display device can include a computer monitor, video projector, and digital television.

The HDMI Splitter is an active device that splits the source signal 4 ways ensuring no signal loss or signal degradation at the 4 output ends. Being an active device it needs external power source (power adaptor), which is supplied with the unit.

This device is simple to install and operate. Connect the input source to the input HDMI connection via a HDMI cable and connect the output displays to the output HDMI connections via HDMI cables. Plug in the power cable and turn on power to the adaptor, before all the input and output equipment. After turning on the source and display equipment it is ready to go.

Best suited for applications where the signal source is required at multiple locations such as sharing TV, DVD, set-top-box, gaming console and computer. This is often required in home entertainment, offices, commercial or industrial applications.

HDMI Splitter 4 x Ports Features

– Allows one HDMI/DVI source to be simultaneously supplied to up to 4 x HDMI equipped displays
– Compatible sources include set-top-boxes, DVD/Blu-ray players and other HDTV devices with HDMI outputs
– Maintain 480p, 576p, 720p, 1080i, 1080p resolutions
– Metal case provides overall shielding without signal interference
– Plug and play, installed in seconds
– HDCP compliant
– Supports 3D

Technical Data

HDMI Source Input Port: 1
Display Device Output Port: 4
Source Port Connection: 19 pin HDMI
Display Device Port Connector: 19 pin HDMI
HDCP Compliant: Yes
Single Link Range: 1920*1200
Input Video Signal: 0.5-1.0 Volt p-p
Input DDC Signal: 5 Volts p-p (TTL)
Deep Colour: 12 Bit
Bandwidth: Up to 140 MHz
Signal Speed: Up to 10.2 Gbps
The Length of Input Cable: S3The Length of Output Cable; 10m
Vertical Frequency Range: 60Hz
Power Consumption (Max.): 3.25 Watts
Operation Temperature: 0C to 70 deg C
Working Voltage: DC 5V
Power Adaptor: 5V, 1A
Net Weight: 0.277kg
Dimensions: (L) 150 x (W) 65 x (H) 26mm

Supplied with 1 x Splitter module, 1 x Power adaptor: 100-240Va.c., 50/60Hz to 5V, 1.0A and 1 x User Manual
